48X

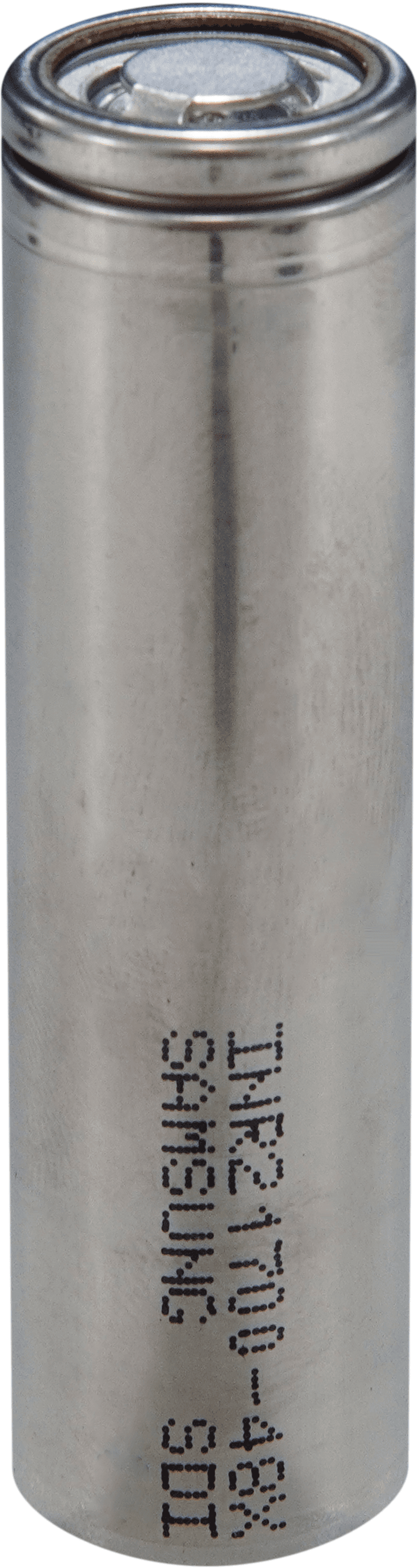

Name: Samsung 48X
Brand: Samsung

Samsung

Coming Soon

48X

Samsung

Coming Soon

Overview

Manufacturer: Samsung
Model: INR21700-48X
Cell Type: Li-ion
Form Factor: Cylindrical 21700
Country of Origin: South Korea
Release Year: 2019

Thermal

Minimum Charge Temperature: -
Maximum Charge Temperature: -
Minimum Discharge Temperature: -
Maximum Discharge Temperature: -

Mechanical

Mass: 69.5 g
Volume: 25.11 cm³
Height: 70.8 mm
Diameter: 21.25 mm

Chemistry

Positive Electrode Material: Ni-based
Negative Electrode Material: Graphite

Electrical

Nominal Energy Capacity: 17.472 Wh
Nominal Charge Capacity: 4.8 Ah
Gravimetric Energy Density: 251 Wh/kg
Volumetric Energy Density: 696 Wh/L
Gravimetric Power Density: 503 W/kg
Volumetric Power Density: 1392 W/L
Max Continuous Charge: 4.8 A

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Coming soon to Simulate. Details available upon request.

Overview

Manufacturer: Samsung
Model: INR21700-48X
Cell Type: Li-ion
Form Factor: Cylindrical 21700
Country of Origin: South Korea
Release Year: 2019

Thermal

Minimum Charge Temperature: -
Maximum Charge Temperature: -
Minimum Discharge Temperature: -
Maximum Discharge Temperature: -

Mechanical

Mass: 69.5 g
Volume: 25.11 cm³
Height: 70.8 mm
Diameter: 21.25 mm

Chemistry

Positive Electrode Material: Ni-based
Negative Electrode Material: Graphite

Electrical

Nominal Energy Capacity: 17.472 Wh
Nominal Charge Capacity: 4.8 Ah
Gravimetric Energy Density: 251 Wh/kg
Volumetric Energy Density: 696 Wh/L
Gravimetric Power Density: 503 W/kg
Volumetric Power Density: 1392 W/L
Max Continuous Charge: 4.8 A

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Coming soon to Simulate. Details available upon request.

Max Continuous Charge (C-rate)

1 C

Max Continuous Discharge

9.6 A

Max Continuous Discharge (C-rate)

2 C

Voltage

Nominal Voltage

3.64 V

Max Voltage

4.2 V

Min Voltage

2.5 V

Max Continuous Charge (C-rate)

1 C

Max Continuous Discharge

9.6 A

Max Continuous Discharge (C-rate)

2 C

Voltage

Nominal Voltage

3.64 V

Max Voltage

4.2 V

Min Voltage

2.5 V
