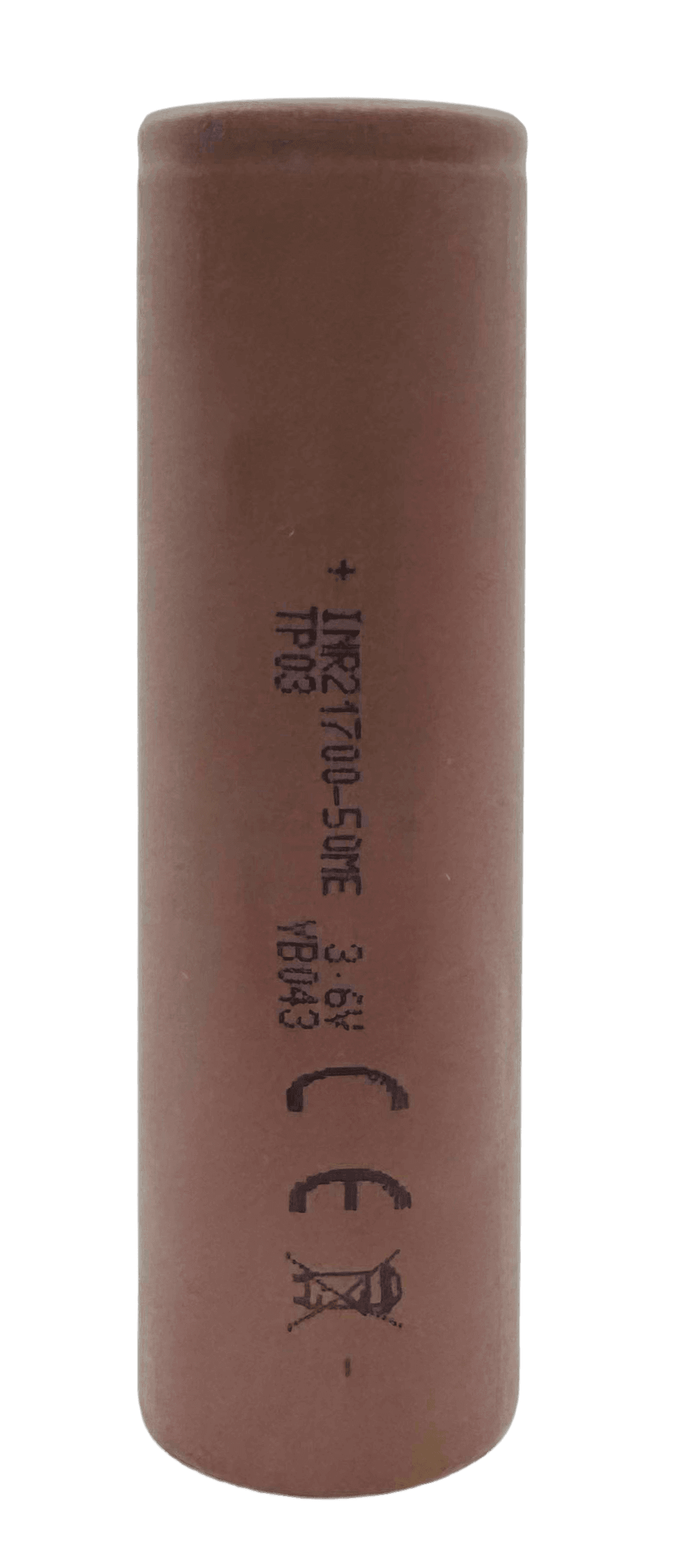

50ME

Name: Tenpower 50ME
Brand: Tenpower

Tenpower

Premium Cell

50ME

Tenpower

Premium Cell

Overview

Manufacturer: Tenpower
Model: INR21700-50ME
Cell Type: Li-ion
Form Factor: Cylindrical 21700
Country of Origin: China
Release Year: 2022

Thermal

Minimum Charge Temperature: -
Maximum Charge Temperature: -
Minimum Discharge Temperature: -
Maximum Discharge Temperature: -

Mechanical

Mass: 75 g
Volume: 25.47 cm³
Height: 70.8 mm
Diameter: 21.4 mm

Chemistry

Positive Electrode Material: Ni-based
Negative Electrode Material: Graphite/Si additive

Electrical

Nominal Energy Capacity: 18 Wh
Nominal Charge Capacity: 5 Ah
Gravimetric Energy Density: 240 Wh/kg
Volumetric Energy Density: 707 Wh/L
Gravimetric Power Density: 720 W/kg
Volumetric Power Density: 2120 W/L
Max Continuous Charge: 4.9 A

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Subscribe to Voltt Premium to run simulations using this cell

Overview

Manufacturer: Tenpower
Model: INR21700-50ME
Cell Type: Li-ion
Form Factor: Cylindrical 21700
Country of Origin: China
Release Year: 2022

Thermal

Minimum Charge Temperature: -
Maximum Charge Temperature: -
Minimum Discharge Temperature: -
Maximum Discharge Temperature: -

Mechanical

Mass: 75 g
Volume: 25.47 cm³
Height: 70.8 mm
Diameter: 21.4 mm

Chemistry

Positive Electrode Material: Ni-based
Negative Electrode Material: Graphite/Si additive

Electrical

Nominal Energy Capacity: 18 Wh
Nominal Charge Capacity: 5 Ah
Gravimetric Energy Density: 240 Wh/kg
Volumetric Energy Density: 707 Wh/L
Gravimetric Power Density: 720 W/kg
Volumetric Power Density: 2120 W/L
Max Continuous Charge: 4.9 A

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Subscribe to Voltt Premium to run simulations using this cell

Max Continuous Charge (C-rate)

1 C

Max Continuous Discharge

15 A

Max Continuous Discharge (C-rate)

3 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.5 V

Max Continuous Charge (C-rate)

1 C

Max Continuous Discharge

15 A

Max Continuous Discharge (C-rate)

3 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.5 V
