50XG

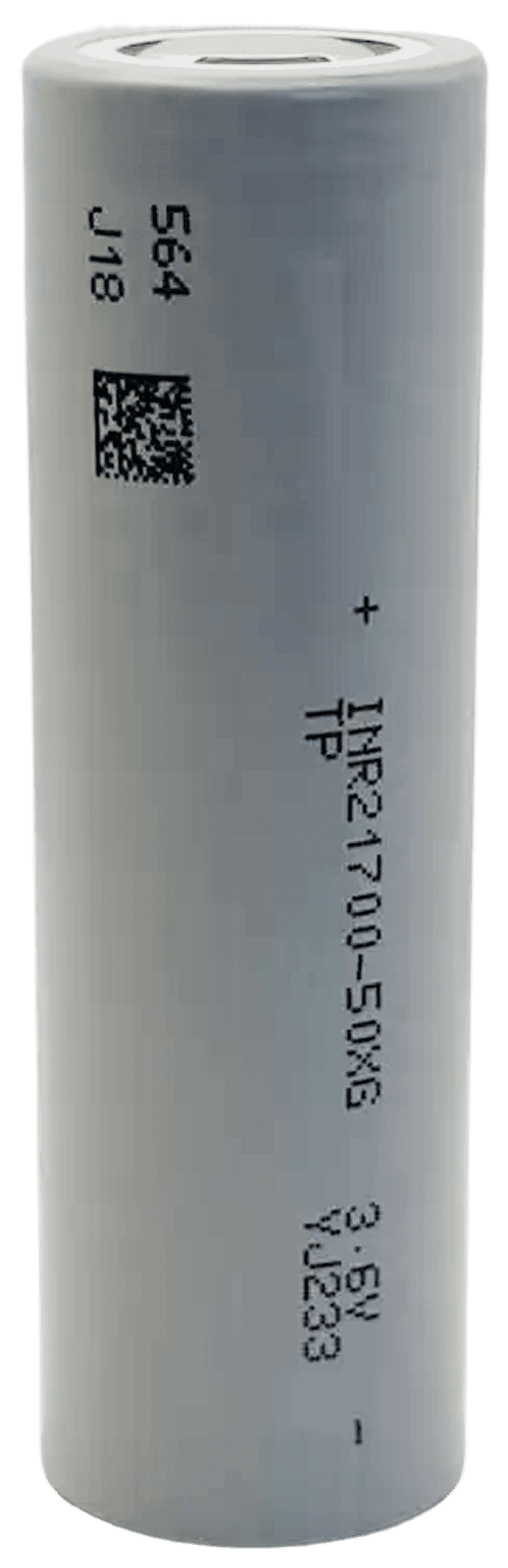

Name: Tenpower 50XG
Brand: Tenpower

Tenpower

Premium Cell

50XG

Tenpower

Premium Cell

Overview

Manufacturer: Tenpower
Model: INR21700-50XG
Cell Type: Li-ion
Form Factor: Cylindrical 21700
Country of Origin: Malaysia
Release Year: 2025

Thermal

Minimum Charge Temperature: -
Maximum Charge Temperature: -
Minimum Discharge Temperature: -
Maximum Discharge Temperature: -

Mechanical

Mass: 70 g
Volume: 25.36 cm³
Height: 70.5 mm
Diameter: 21.4 mm

Chemistry

Positive Electrode Material: Ni-based
Negative Electrode Material: Graphite/Si additive

Electrical

Nominal Energy Capacity: 18 Wh
Nominal Charge Capacity: 5 Ah
Gravimetric Energy Density: 257 Wh/kg
Volumetric Energy Density: 710 Wh/L
Gravimetric Power Density: 4629 W/kg
Volumetric Power Density: 12776 W/L
Max Continuous Charge: 15 A

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Subscribe to Voltt Premium to run simulations using this cell

Overview

Manufacturer: Tenpower
Model: INR21700-50XG
Cell Type: Li-ion
Form Factor: Cylindrical 21700
Country of Origin: Malaysia
Release Year: 2025

Thermal

Minimum Charge Temperature: -
Maximum Charge Temperature: -
Minimum Discharge Temperature: -
Maximum Discharge Temperature: -

Mechanical

Mass: 70 g
Volume: 25.36 cm³
Height: 70.5 mm
Diameter: 21.4 mm

Chemistry

Positive Electrode Material: Ni-based
Negative Electrode Material: Graphite/Si additive

Electrical

Nominal Energy Capacity: 18 Wh
Nominal Charge Capacity: 5 Ah
Gravimetric Energy Density: 257 Wh/kg
Volumetric Energy Density: 710 Wh/L
Gravimetric Power Density: 4629 W/kg
Volumetric Power Density: 12776 W/L
Max Continuous Charge: 15 A

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Subscribe to Voltt Premium to run simulations using this cell

Max Continuous Charge (C-rate)

3 C

Max Continuous Discharge

90 A

Max Continuous Discharge (C-rate)

18 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.5 V

Max Continuous Charge (C-rate)

3 C

Max Continuous Discharge

90 A

Max Continuous Discharge (C-rate)

18 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.5 V
