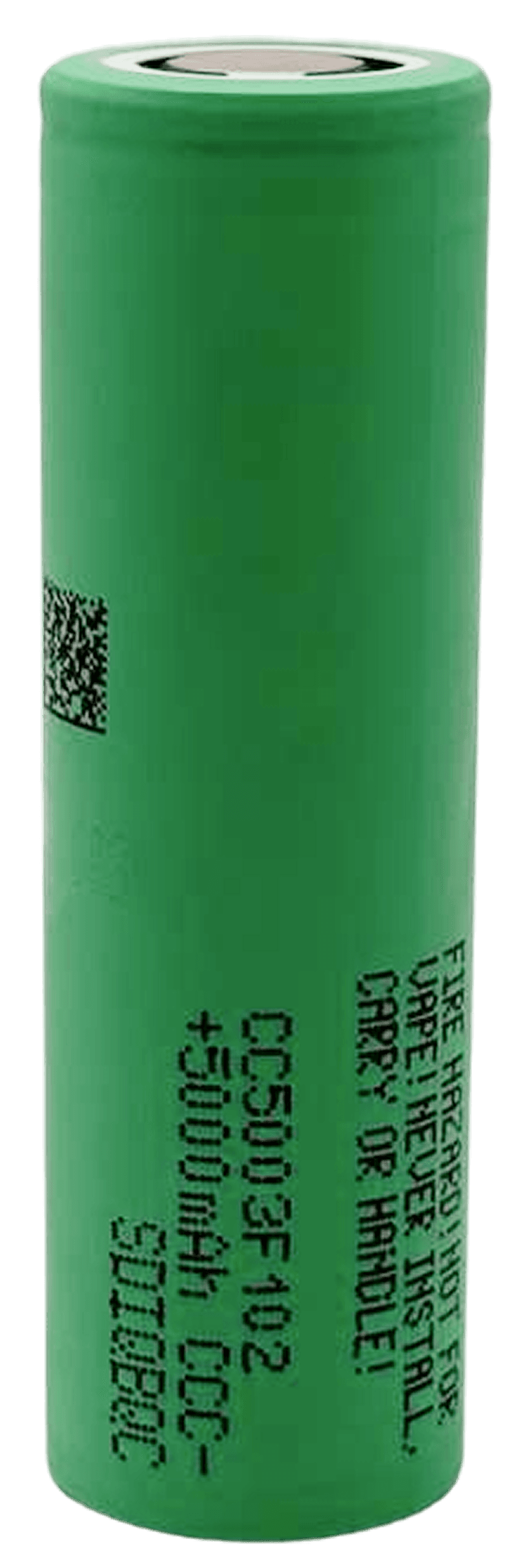

50U

Samsung

Coming Soon

Coming soon to Simulate. Details available upon request.

Overview

Manufacturer: Samsung
Model: 50U
Cell Type: Li-ion
Form Factor: Cylindrical 21700
Country of Origin: South Korea
Release Year: 2025

Thermal

Minimum Charge Temperature: -10 °C
Maximum Charge Temperature: 60 °C

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

50U

Samsung

Coming Soon

Coming soon to Simulate. Details available upon request.

Overview

Manufacturer: Samsung
Model: 50U
Cell Type: Li-ion
Form Factor: Cylindrical 21700
Country of Origin: South Korea
Release Year: 2025

Thermal

Minimum Charge Temperature: -10 °C
Maximum Charge Temperature: 60 °C

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Minimum Discharge Temperature

-20 °C

Maximum Discharge Temperature

60 °C

Mechanical

Mass: 72 g
Volume: 25.4 cm³
Height: 70.62 mm
Diameter: 21.4 mm

Chemistry

Positive Electrode Material: Ni-based
Negative Electrode Material: -

Electrical

Nominal Energy Capacity: 18 Wh
Nominal Charge Capacity: 5 Ah
Gravimetric Energy Density: 250 Wh/kg
Volumetric Energy Density: 709 Wh/L
Gravimetric Power Density: 3000 W/kg
Volumetric Power Density: 8504 W/L
Max Continuous Charge: 15 A
Max Continuous Charge (C-rate): 3 C
Max Continuous Discharge: 60 A
Max Continuous Discharge (C-rate): 12 C
Nominal Voltage: 3.6 V
Max Voltage: -
Min Voltage: -

Minimum Discharge Temperature

-20 °C

Maximum Discharge Temperature

60 °C

Mechanical

Mass: 72 g
Volume: 25.4 cm³
Height: 70.62 mm
Diameter: 21.4 mm

Chemistry

Positive Electrode Material: Ni-based
Negative Electrode Material: -

Electrical

Nominal Energy Capacity: 18 Wh
Nominal Charge Capacity: 5 Ah
Gravimetric Energy Density: 250 Wh/kg
Volumetric Energy Density: 709 Wh/L
Gravimetric Power Density: 3000 W/kg
Volumetric Power Density: 8504 W/L
Max Continuous Charge: 15 A
Max Continuous Charge (C-rate): 3 C
Max Continuous Discharge: 60 A
Max Continuous Discharge (C-rate): 12 C
Nominal Voltage: 3.6 V
Max Voltage: -
Min Voltage: -
