50S

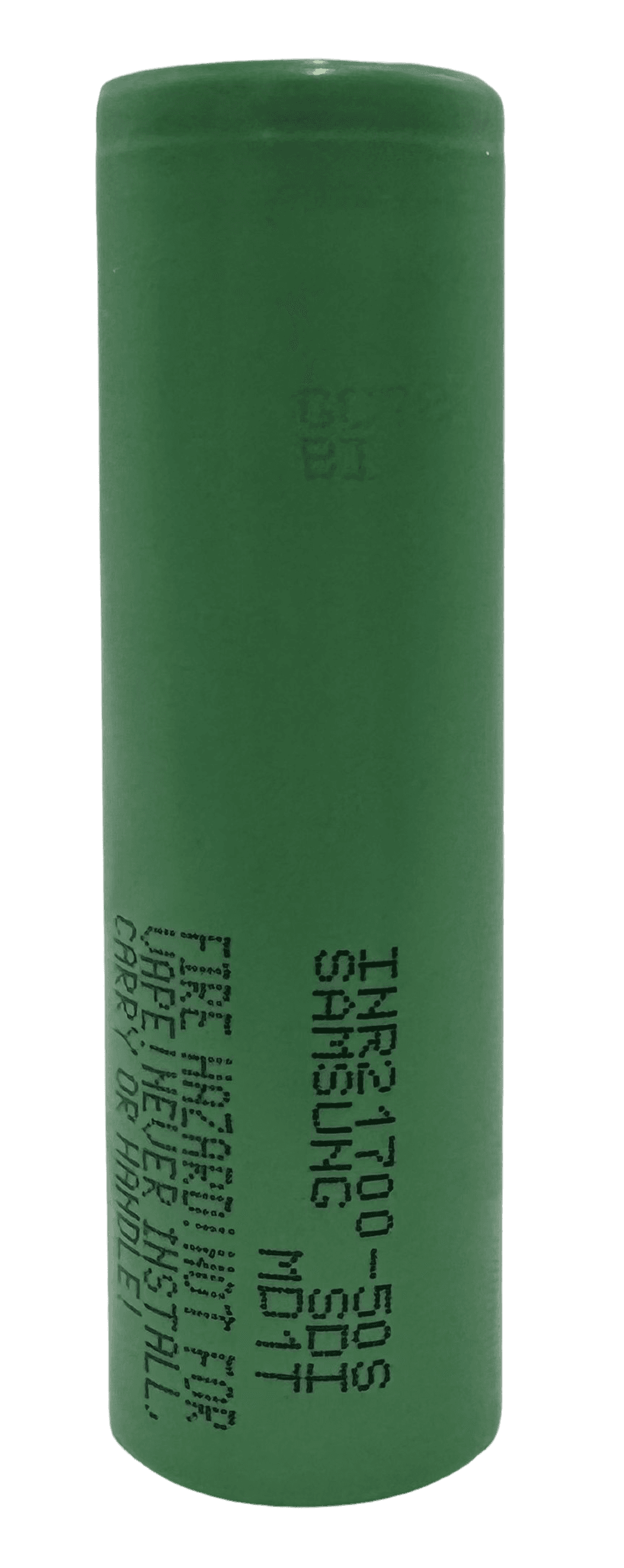

Name: Samsung 50S
Brand: Samsung

Samsung

Premium Cell

50S

Samsung

Premium Cell

Overview

Manufacturer: Samsung
Model: INR21700-50S
Cell Type: Li-ion
Form Factor: Cylindrical 21700
Country of Origin: South Korea
Release Year: 2020

Thermal

Minimum Charge Temperature: -
Maximum Charge Temperature: -
Minimum Discharge Temperature: -
Maximum Discharge Temperature: -

Mechanical

Mass: 72 g
Volume: 25.05 cm³
Height: 70.62 mm
Diameter: 21.25 mm

Chemistry

Positive Electrode Material: Ni-based (high Ni)
Negative Electrode Material: Graphite/Si additive

Electrical

Nominal Energy Capacity: 18 Wh
Nominal Charge Capacity: 5 Ah
Gravimetric Energy Density: 250 Wh/kg
Volumetric Energy Density: 719 Wh/L
Gravimetric Power Density: 2250 W/kg
Volumetric Power Density: 6467 W/L
Max Continuous Charge: 6 A

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Subscribe to Voltt Premium to run simulations using this cell

Overview

Manufacturer: Samsung
Model: INR21700-50S
Cell Type: Li-ion
Form Factor: Cylindrical 21700
Country of Origin: South Korea
Release Year: 2020

Thermal

Minimum Charge Temperature: -
Maximum Charge Temperature: -
Minimum Discharge Temperature: -
Maximum Discharge Temperature: -

Mechanical

Mass: 72 g
Volume: 25.05 cm³
Height: 70.62 mm
Diameter: 21.25 mm

Chemistry

Positive Electrode Material: Ni-based (high Ni)
Negative Electrode Material: Graphite/Si additive

Electrical

Nominal Energy Capacity: 18 Wh
Nominal Charge Capacity: 5 Ah
Gravimetric Energy Density: 250 Wh/kg
Volumetric Energy Density: 719 Wh/L
Gravimetric Power Density: 2250 W/kg
Volumetric Power Density: 6467 W/L
Max Continuous Charge: 6 A

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Subscribe to Voltt Premium to run simulations using this cell

Max Continuous Charge (C-rate)

1.2 C

Max Continuous Discharge

45 A

Max Continuous Discharge (C-rate)

9 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.5 V

Max Continuous Charge (C-rate)

1.2 C

Max Continuous Discharge

45 A

Max Continuous Discharge (C-rate)

9 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.5 V
