50E

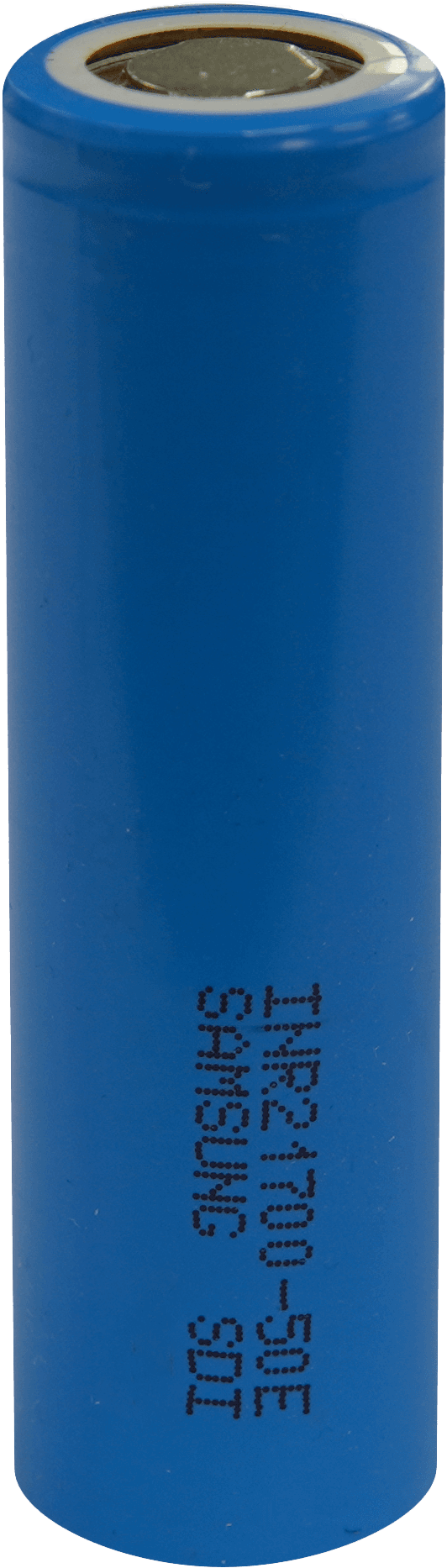

Name: Samsung 50E
Brand: Samsung

Samsung

Premium Cell

50E

Samsung

Premium Cell

Overview

Manufacturer: Samsung
Model: INR21700-50E
Cell Type: Li-ion
Form Factor: Cylindrical 21700
Country of Origin: South Korea
Release Year: 2017

Thermal

Minimum Charge Temperature: -
Maximum Charge Temperature: -
Minimum Discharge Temperature: -
Maximum Discharge Temperature: -

Mechanical

Mass: 69 g
Volume: 22.8 cm³
Height: 70.8 mm
Diameter: 20.25 mm

Chemistry

Positive Electrode Material: Ni-based
Negative Electrode Material: Graphite

Electrical

Nominal Energy Capacity: 17.64 Wh
Nominal Charge Capacity: 4.9 Ah
Gravimetric Energy Density: 256 Wh/kg
Volumetric Energy Density: 774 Wh/L
Gravimetric Power Density: 511 W/kg
Volumetric Power Density: 1547 W/L
Max Continuous Charge: 4.9 A

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Subscribe to Voltt Premium to run simulations using this cell

Overview

Manufacturer: Samsung
Model: INR21700-50E
Cell Type: Li-ion
Form Factor: Cylindrical 21700
Country of Origin: South Korea
Release Year: 2017

Thermal

Minimum Charge Temperature: -
Maximum Charge Temperature: -
Minimum Discharge Temperature: -
Maximum Discharge Temperature: -

Mechanical

Mass: 69 g
Volume: 22.8 cm³
Height: 70.8 mm
Diameter: 20.25 mm

Chemistry

Positive Electrode Material: Ni-based
Negative Electrode Material: Graphite

Electrical

Nominal Energy Capacity: 17.64 Wh
Nominal Charge Capacity: 4.9 Ah
Gravimetric Energy Density: 256 Wh/kg
Volumetric Energy Density: 774 Wh/L
Gravimetric Power Density: 511 W/kg
Volumetric Power Density: 1547 W/L
Max Continuous Charge: 4.9 A

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Subscribe to Voltt Premium to run simulations using this cell

Max Continuous Charge (C-rate)

1 C

Max Continuous Discharge

9.8 A

Max Continuous Discharge (C-rate)

2 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.5 V

Max Continuous Charge (C-rate)

1 C

Max Continuous Discharge

9.8 A

Max Continuous Discharge (C-rate)

2 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.5 V
