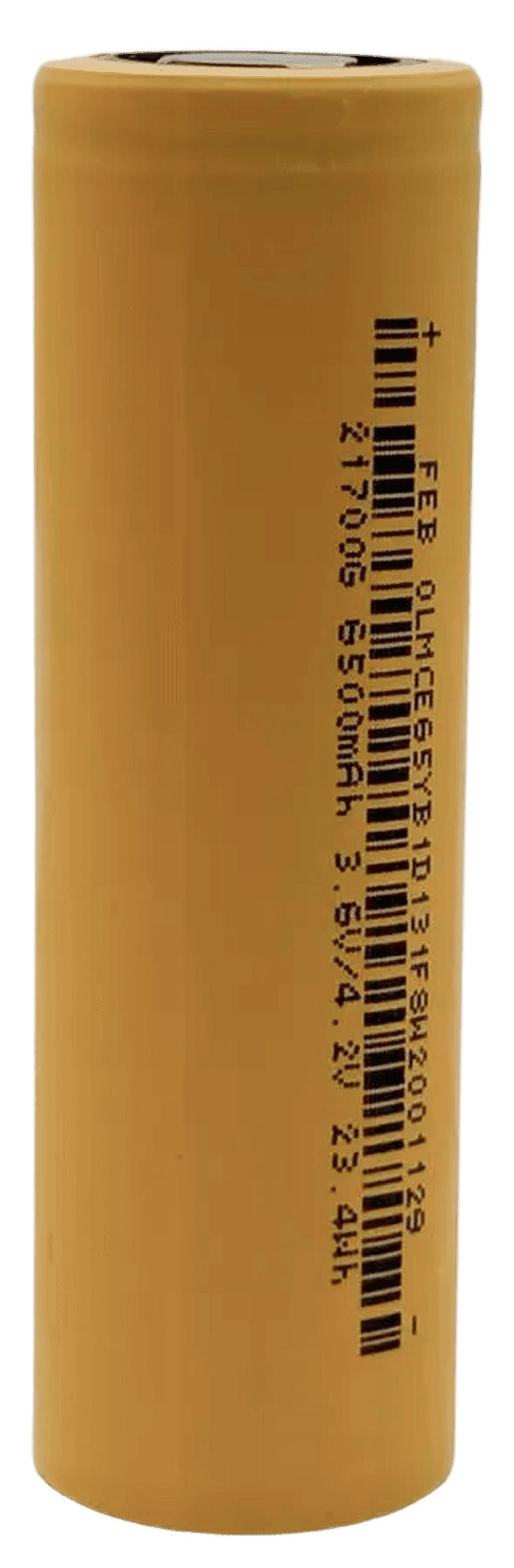

68E

FEB

FEB-68E-FEB-68E-battery-advanced-datasheets-and-models

Premium Cell

Subscribe to Voltt Premium to run simulations using this cell

Overview

Manufacturer: FEB
Model: 68E
Cell Type: Li-ion
Form Factor: Cylindrical 21700
Country of Origin: China
Release Year: 2025

Thermal

Minimum Charge Temperature: -
Maximum Charge Temperature: -

68E

FEB

Premium Cell

Subscribe to Voltt Premium to run simulations using this cell

Overview

Manufacturer: FEB
Model: 68E
Cell Type: Li-ion
Form Factor: Cylindrical 21700
Country of Origin: China
Release Year: 2025

Thermal

Minimum Charge Temperature: -
Maximum Charge Temperature: -

Minimum Discharge Temperature

-

Maximum Discharge Temperature

-

Mechanical

Mass: 75 g
Volume: 28.29 cm³
Height: 71.15 mm
Diameter: 21.85 mm

Chemistry

Positive Electrode Material: Ni-based
Negative Electrode Material: -

Electrical

Nominal Energy Capacity: 23.4 Wh
Nominal Charge Capacity: 6.5 Ah
Gravimetric Energy Density: 312 Wh/kg
Volumetric Energy Density: 827 Wh/L
Gravimetric Power Density: 624 W/kg
Volumetric Power Density: 1654 W/L
Max Continuous Charge: 4.55 A
Max Continuous Charge (C-rate): 0.7 C
Max Continuous Discharge: 13 A
Max Continuous Discharge (C-rate): 2 C
Nominal Voltage: 3.6 V
Max Voltage: 4.2 V
Min Voltage: 2.5 V

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Minimum Discharge Temperature

-

Maximum Discharge Temperature

-

Mechanical

Mass: 75 g
Volume: 28.29 cm³
Height: 71.15 mm
Diameter: 21.85 mm

Chemistry

Positive Electrode Material: Ni-based
Negative Electrode Material: -

Electrical

Nominal Energy Capacity: 23.4 Wh
Nominal Charge Capacity: 6.5 Ah
Gravimetric Energy Density: 312 Wh/kg
Volumetric Energy Density: 827 Wh/L
Gravimetric Power Density: 624 W/kg
Volumetric Power Density: 1654 W/L
Max Continuous Charge: 4.55 A
Max Continuous Charge (C-rate): 0.7 C
Max Continuous Discharge: 13 A
Max Continuous Discharge (C-rate): 2 C
Nominal Voltage: 3.6 V
Max Voltage: 4.2 V
Min Voltage: 2.5 V

Simulate This Cell

Run simulations with custom duty cycles and pack configurations
