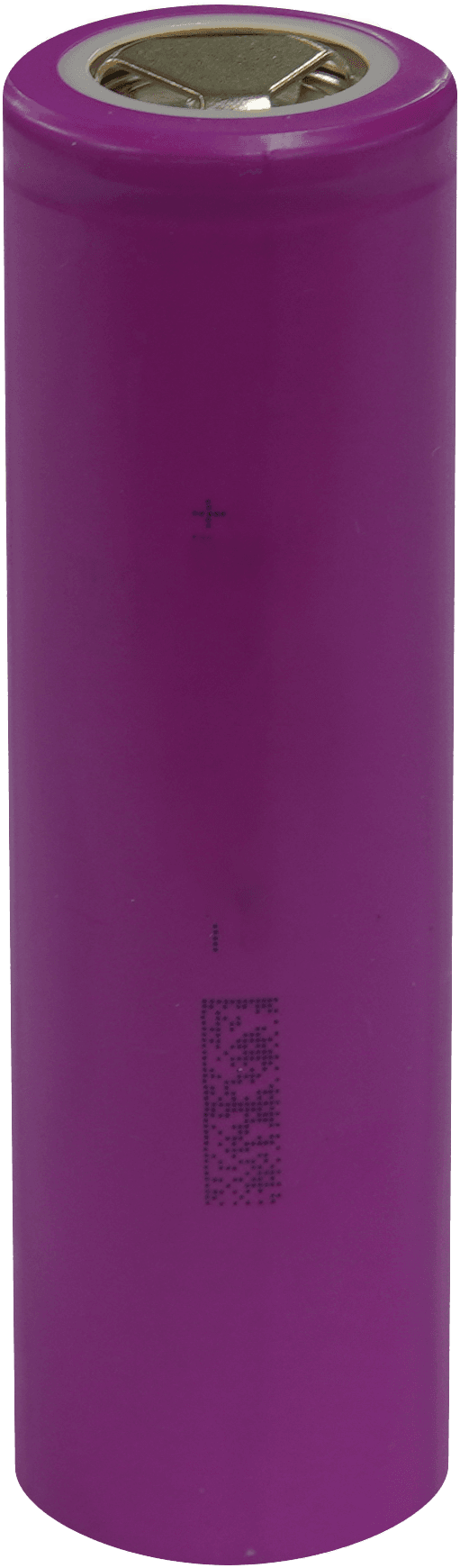

LR2170SD

Lishen

Coming Soon

We tear down cells and accurately measure every physical parameter

Book a Call

Overview

Manufacturer

Lishen

Cell Model

LR2170SD

Cell Type

Li-ion

Form Factor

Cylindrical 21700

Country of Origin

China

Release Year

2020

Thermal

Minimum Charge Temperature

-

Maximum Charge Temperature

-

Maximum Discharge Temperature

-

Minimum Discharge Temperature

-

Mechanical

Mass

75 g

Volume

26.78 cm³

Height

71.1 mm

Diameter

21.9 mm

Chemistry

Positive Electrode Material

-

Negative Electrode Material

-

Electrical

Energy

Volumetric Energy Density

645 Wh/L

Gravimetric Energy Density

230 Wh/kg

Nominal Energy Capacity

17.28 Wh

Nominal Charge Capacity

4.8 Ah

Power

Volumetric Power Density

1291 W/L

Gravimetric Power Density

461 W/kg

Current

Max Continuous Charge

3.36 A

Max Continuous Charge (C-rate)

0.7 C

Max Continuous Discharge

9.6 A

Max Continuous Discharge (C-rate)

2 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.5 V

This cell is coming to Simulate soon - want to access cell insights now?

Speak with our team to access this advanced simulation output

Fixed Rate

0.5 C1 C3 C

Load Type

Operation

Initial SOC [%]

Initial Cell Temperature [°C]

Heat Transfer Coefficient [W/m²K]

Want to edit the inputs and run your own Drive Cycles?
