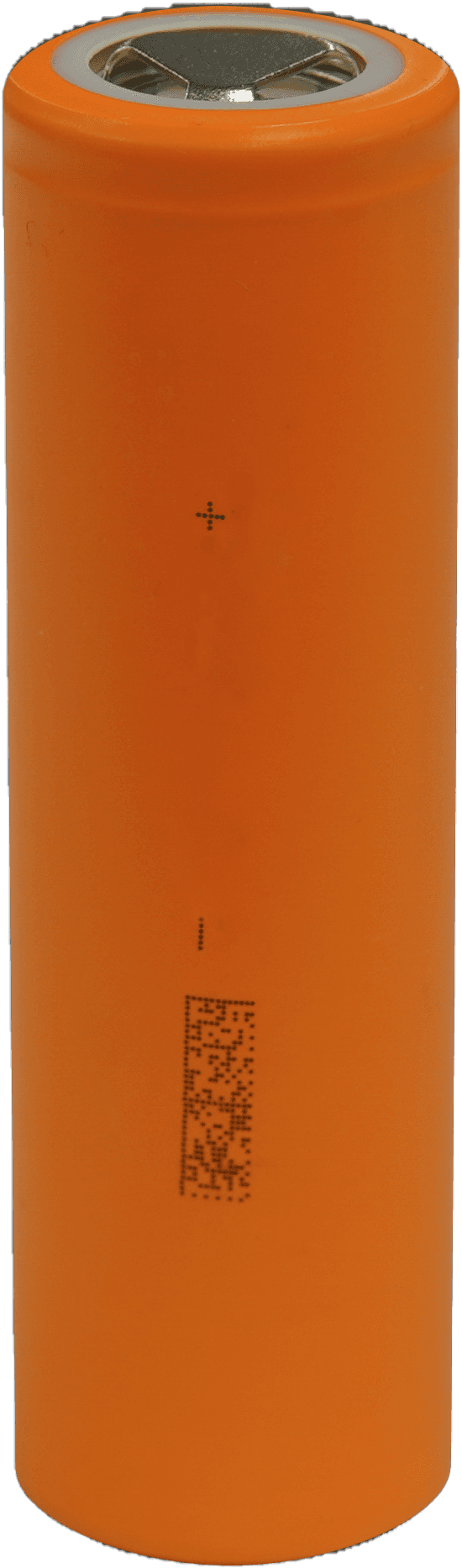

LR2170SF

Lishen

Coming Soon

LR2170SF

Lishen

Coming Soon

Overview

Manufacturer: Lishen
Model: LR2170SF
Cell Type: Li-ion
Form Factor: Cylindrical 21700
Country of Origin: China
Release Year: 2018

Thermal

Minimum Charge Temperature: -
Maximum Charge Temperature: -
Minimum Discharge Temperature: -
Maximum Discharge Temperature: -

Mechanical

Mass: 76 g
Volume: 26.78 cm³
Height: 71.1 mm
Diameter: 21.9 mm

Chemistry

Positive Electrode Material: -
Negative Electrode Material: -

Electrical

Nominal Energy Capacity: 16.2 Wh
Nominal Charge Capacity: 4.5 Ah
Gravimetric Energy Density: 213 Wh/kg
Volumetric Energy Density: 605 Wh/L
Gravimetric Power Density: 426 W/kg
Volumetric Power Density: 1210 W/L
Max Continuous Charge: 2.25 A

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Coming soon to Simulate. Details available upon request.

Overview

Manufacturer: Lishen
Model: LR2170SF
Cell Type: Li-ion
Form Factor: Cylindrical 21700
Country of Origin: China
Release Year: 2018

Thermal

Minimum Charge Temperature: -
Maximum Charge Temperature: -
Minimum Discharge Temperature: -
Maximum Discharge Temperature: -

Mechanical

Mass: 76 g
Volume: 26.78 cm³
Height: 71.1 mm
Diameter: 21.9 mm

Chemistry

Positive Electrode Material: -
Negative Electrode Material: -

Electrical

Nominal Energy Capacity: 16.2 Wh
Nominal Charge Capacity: 4.5 Ah
Gravimetric Energy Density: 213 Wh/kg
Volumetric Energy Density: 605 Wh/L
Gravimetric Power Density: 426 W/kg
Volumetric Power Density: 1210 W/L
Max Continuous Charge: 2.25 A

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Coming soon to Simulate. Details available upon request.

Max Continuous Charge (C-rate)

0.5 C

Max Continuous Discharge

9 A

Max Continuous Discharge (C-rate)

2 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.5 V

Max Continuous Charge (C-rate)

0.5 C

Max Continuous Discharge

9 A

Max Continuous Discharge (C-rate)

2 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.5 V
