60XG

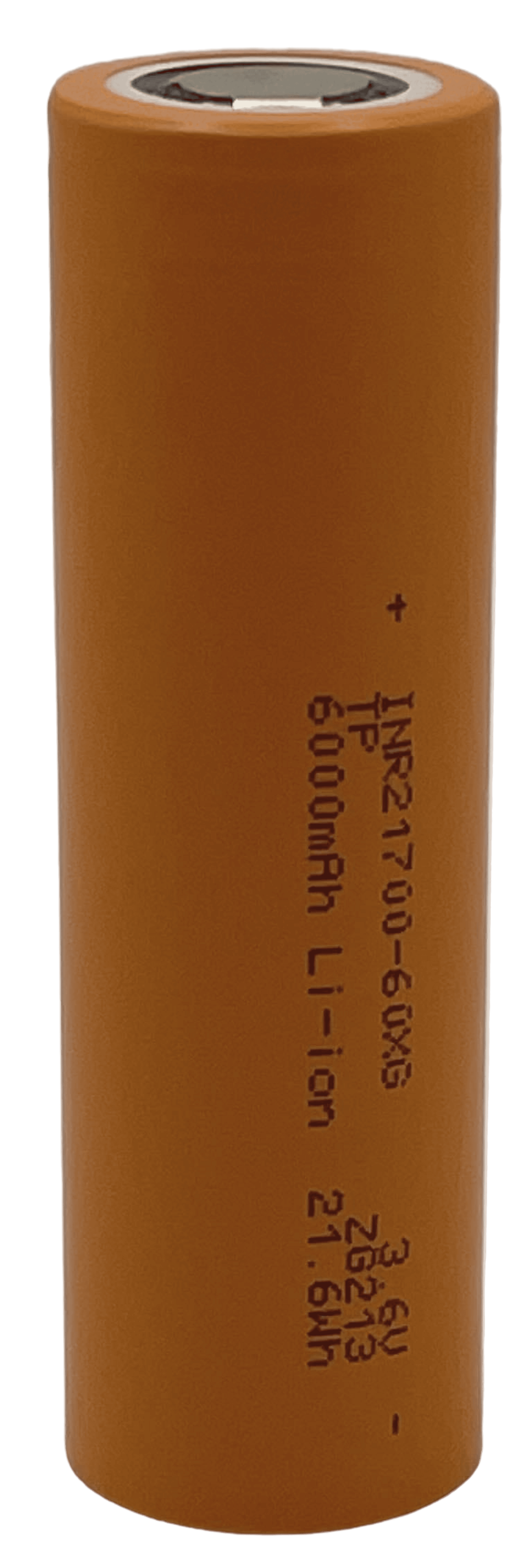

Name: Tenpower 60XG
Brand: Tenpower

Tenpower

Coming Soon

60XG

Tenpower

Coming Soon

Overview

Manufacturer: Tenpower
Model: INR21700-60XG
Cell Type: Li-ion
Form Factor: Cylindrical 21700
Country of Origin: China
Release Year: 2026

Thermal

Minimum Charge Temperature: 0 °C
Maximum Charge Temperature: 45 °C
Minimum Discharge Temperature: -20 °C
Maximum Discharge Temperature: 60 °C

Mechanical

Mass: 76 g
Volume: 25.36 cm³
Height: 70.5 mm
Diameter: 21.5 mm

Chemistry

Positive Electrode Material: Ni-based
Negative Electrode Material: -

Electrical

Nominal Energy Capacity: 21.6 Wh
Nominal Charge Capacity: 6 Ah
Gravimetric Energy Density: 284 Wh/kg
Volumetric Energy Density: 852 Wh/L
Gravimetric Power Density: 1895 W/kg
Volumetric Power Density: 5678 W/L
Max Continuous Charge: 16 A

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Coming soon to Simulate. Details available upon request.

Overview

Manufacturer: Tenpower
Model: INR21700-60XG
Cell Type: Li-ion
Form Factor: Cylindrical 21700
Country of Origin: China
Release Year: 2026

Thermal

Minimum Charge Temperature: 0 °C
Maximum Charge Temperature: 45 °C
Minimum Discharge Temperature: -20 °C
Maximum Discharge Temperature: 60 °C

Mechanical

Mass: 76 g
Volume: 25.36 cm³
Height: 70.5 mm
Diameter: 21.5 mm

Chemistry

Positive Electrode Material: Ni-based
Negative Electrode Material: -

Electrical

Nominal Energy Capacity: 21.6 Wh
Nominal Charge Capacity: 6 Ah
Gravimetric Energy Density: 284 Wh/kg
Volumetric Energy Density: 852 Wh/L
Gravimetric Power Density: 1895 W/kg
Volumetric Power Density: 5678 W/L
Max Continuous Charge: 16 A

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Coming soon to Simulate. Details available upon request.

Max Continuous Charge (C-rate)

2.7 C

Max Continuous Discharge

40 A

Max Continuous Discharge (C-rate)

6.7 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.5 V

Max Continuous Charge (C-rate)

2.7 C

Max Continuous Discharge

40 A

Max Continuous Discharge (C-rate)

6.7 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.5 V
