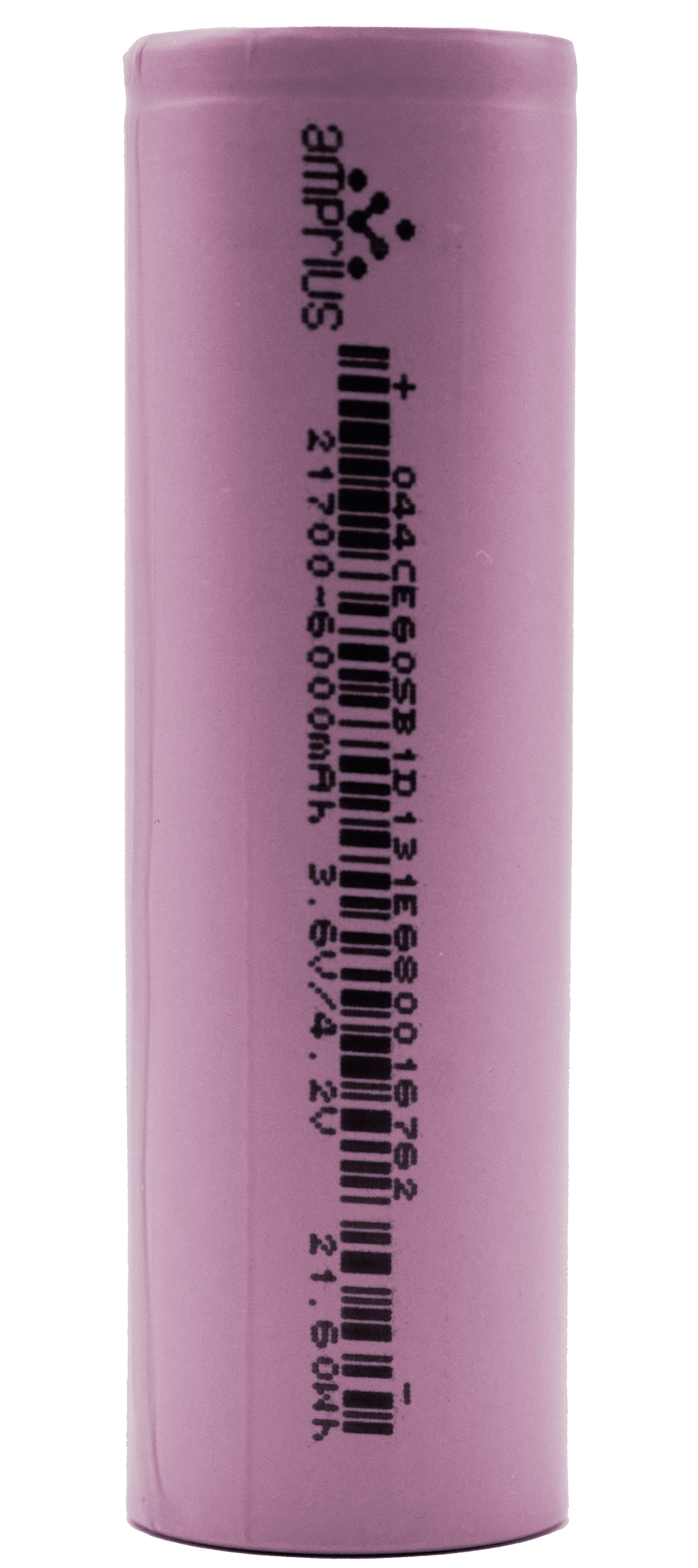

SA17

Amprius

Premium Cell

We tear down cells and accurately measure every physical parameter

Book a Call

Overview

Manufacturer

Amprius

Cell Model

SA17

Cell Type

Li-ion

Form Factor

Cylindrical 21700

Country of Origin

United States

Release Year

-

Thermal

Minimum Charge Temperature

-

Maximum Charge Temperature

-

Maximum Discharge Temperature

-

Minimum Discharge Temperature

-

Mechanical

Mass

75 g

Volume

26.68 cm³

Height

71.15 mm

Diameter

21.85 mm

Chemistry

Positive Electrode Material

Ni-based

Negative Electrode Material

Graphite/Si additive

Electrical

Energy

Volumetric Energy Density

810 Wh/L

Gravimetric Energy Density

288 Wh/kg

Nominal Energy Capacity

21.6 Wh

Nominal Charge Capacity

6 Ah

Power

Volumetric Power Density

2429 W/L

Gravimetric Power Density

864 W/kg

Current

Max Continuous Charge

6 A

Max Continuous Charge (C-rate)

1 C

Max Continuous Discharge

18 A

Max Continuous Discharge (C-rate)

3 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.5 V

Fixed Rate

0.5 C1 C3 C

Load Type

Operation

Initial SOC [%]

Initial Cell Temperature [°C]

Heat Transfer Coefficient [W/m²K]

Want to edit the inputs and run your own Drive Cycles?
