35E

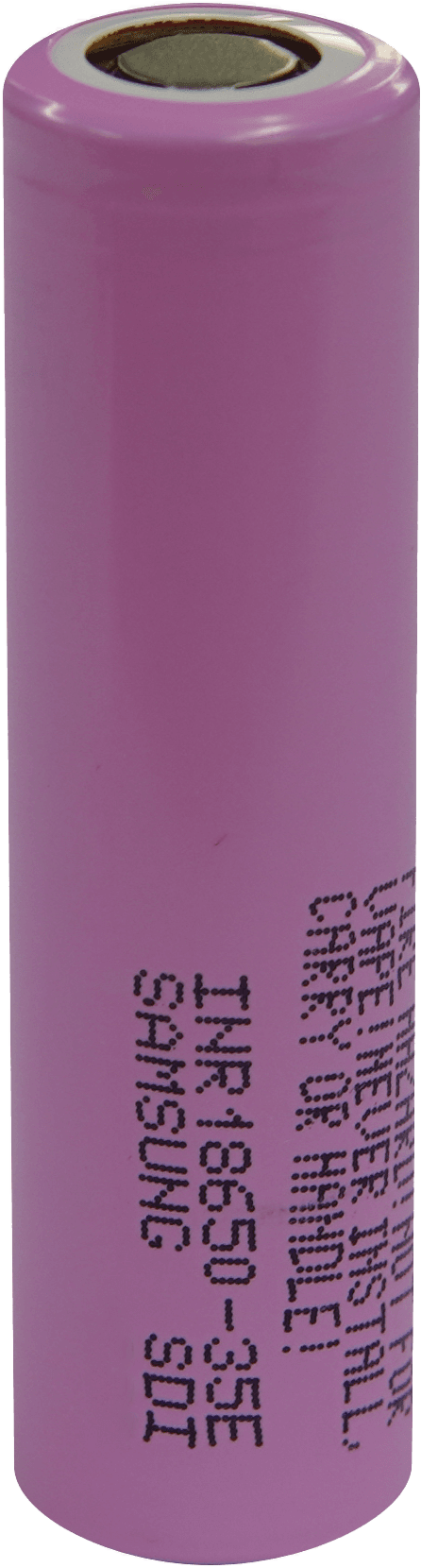

Name: Samsung 35E
Brand: Samsung

Samsung

Coming Soon

35E

Samsung

Coming Soon

Overview

Manufacturer: Samsung
Model: INR18650-35E
Cell Type: Li-ion
Form Factor: Cylindrical 18650
Country of Origin: South Korea
Release Year: 2015

Thermal

Minimum Charge Temperature: -
Maximum Charge Temperature: -
Minimum Discharge Temperature: -
Maximum Discharge Temperature: -

Mechanical

Mass: 50 g
Volume: 17.63 cm³
Height: 65.25 mm
Diameter: 18.55 mm

Chemistry

Positive Electrode Material: Ni-based
Negative Electrode Material: -

Electrical

Nominal Energy Capacity: 12.24 Wh
Nominal Charge Capacity: 3.4 Ah
Gravimetric Energy Density: 245 Wh/kg
Volumetric Energy Density: 694 Wh/L
Gravimetric Power Density: 576 W/kg
Volumetric Power Density: 1634 W/L
Max Continuous Charge: 2 A

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Coming soon to Simulate. Details available upon request.

Overview

Manufacturer: Samsung
Model: INR18650-35E
Cell Type: Li-ion
Form Factor: Cylindrical 18650
Country of Origin: South Korea
Release Year: 2015

Thermal

Minimum Charge Temperature: -
Maximum Charge Temperature: -
Minimum Discharge Temperature: -
Maximum Discharge Temperature: -

Mechanical

Mass: 50 g
Volume: 17.63 cm³
Height: 65.25 mm
Diameter: 18.55 mm

Chemistry

Positive Electrode Material: Ni-based
Negative Electrode Material: -

Electrical

Nominal Energy Capacity: 12.24 Wh
Nominal Charge Capacity: 3.4 Ah
Gravimetric Energy Density: 245 Wh/kg
Volumetric Energy Density: 694 Wh/L
Gravimetric Power Density: 576 W/kg
Volumetric Power Density: 1634 W/L
Max Continuous Charge: 2 A

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Coming soon to Simulate. Details available upon request.

Max Continuous Charge (C-rate)

0.6 C

Max Continuous Discharge

8 A

Max Continuous Discharge (C-rate)

2.4 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.65 V

Max Continuous Charge (C-rate)

0.6 C

Max Continuous Discharge

8 A

Max Continuous Discharge (C-rate)

2.4 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.65 V
