40T

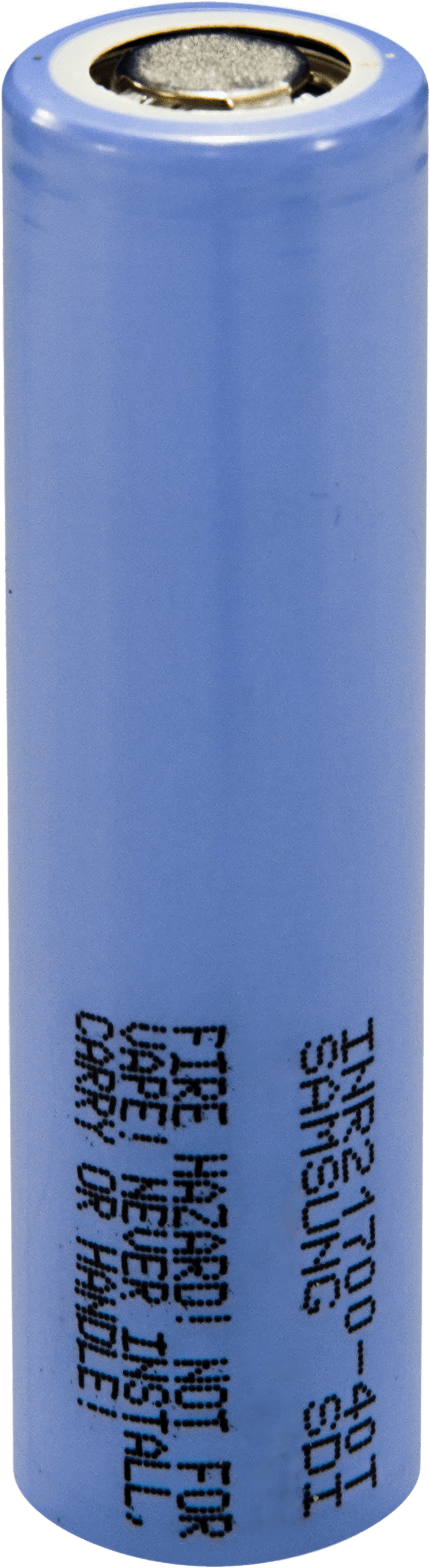

Name: Samsung 40T
Brand: Samsung

Samsung

Coming Soon

40T

Samsung

Coming Soon

Overview

Manufacturer: Samsung
Model: INR21700-40T
Cell Type: Li-ion
Form Factor: Cylindrical 21700
Country of Origin: South Korea
Release Year: 2017

Thermal

Minimum Charge Temperature: -
Maximum Charge Temperature: -
Minimum Discharge Temperature: -
Maximum Discharge Temperature: -

Mechanical

Mass: 70 g
Volume: 24.86 cm³
Height: 70.3 mm
Diameter: 21.22 mm

Chemistry

Positive Electrode Material: Ni-based
Negative Electrode Material: Graphite

Electrical

Nominal Energy Capacity: 14.4 Wh
Nominal Charge Capacity: 4 Ah
Gravimetric Energy Density: 206 Wh/kg
Volumetric Energy Density: 579 Wh/L
Gravimetric Power Density: 2314 W/kg
Volumetric Power Density: 6516 W/L
Max Continuous Charge: 6 A

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Coming soon to Simulate. Details available upon request.

Overview

Manufacturer: Samsung
Model: INR21700-40T
Cell Type: Li-ion
Form Factor: Cylindrical 21700
Country of Origin: South Korea
Release Year: 2017

Thermal

Minimum Charge Temperature: -
Maximum Charge Temperature: -
Minimum Discharge Temperature: -
Maximum Discharge Temperature: -

Mechanical

Mass: 70 g
Volume: 24.86 cm³
Height: 70.3 mm
Diameter: 21.22 mm

Chemistry

Positive Electrode Material: Ni-based
Negative Electrode Material: Graphite

Electrical

Nominal Energy Capacity: 14.4 Wh
Nominal Charge Capacity: 4 Ah
Gravimetric Energy Density: 206 Wh/kg
Volumetric Energy Density: 579 Wh/L
Gravimetric Power Density: 2314 W/kg
Volumetric Power Density: 6516 W/L
Max Continuous Charge: 6 A

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Coming soon to Simulate. Details available upon request.

Max Continuous Charge (C-rate)

1.5 C

Max Continuous Discharge

45 A

Max Continuous Discharge (C-rate)

11.3 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.5 V

Max Continuous Charge (C-rate)

1.5 C

Max Continuous Discharge

45 A

Max Continuous Discharge (C-rate)

11.3 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.5 V
