30Q

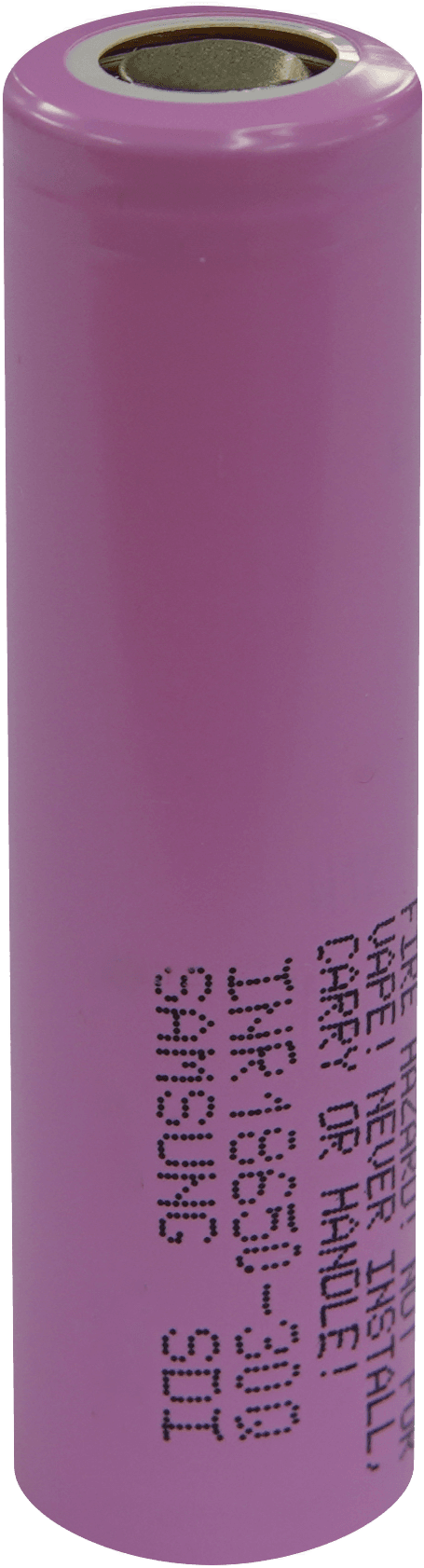

Name: Samsung 30Q
Brand: Samsung

Samsung

Coming Soon

30Q

Samsung

Coming Soon

Overview

Manufacturer: Samsung
Model: INR18650-30Q
Cell Type: Li-ion
Form Factor: Cylindrical 18650
Country of Origin: South Korea
Release Year: 2015

Thermal

Minimum Charge Temperature: -
Maximum Charge Temperature: -
Minimum Discharge Temperature: -
Maximum Discharge Temperature: -

Mechanical

Mass: 48 g
Volume: 17.28 cm³
Height: 65 mm
Diameter: 18.4 mm

Chemistry

Positive Electrode Material: Ni-based
Negative Electrode Material: Graphite

Electrical

Nominal Energy Capacity: 10.8 Wh
Nominal Charge Capacity: 3 Ah
Gravimetric Energy Density: 225 Wh/kg
Volumetric Energy Density: 625 Wh/L
Gravimetric Power Density: 1125 W/kg
Volumetric Power Density: 3125 W/L
Max Continuous Charge: 4 A

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Coming soon to Simulate. Details available upon request.

Overview

Manufacturer: Samsung
Model: INR18650-30Q
Cell Type: Li-ion
Form Factor: Cylindrical 18650
Country of Origin: South Korea
Release Year: 2015

Thermal

Minimum Charge Temperature: -
Maximum Charge Temperature: -
Minimum Discharge Temperature: -
Maximum Discharge Temperature: -

Mechanical

Mass: 48 g
Volume: 17.28 cm³
Height: 65 mm
Diameter: 18.4 mm

Chemistry

Positive Electrode Material: Ni-based
Negative Electrode Material: Graphite

Electrical

Nominal Energy Capacity: 10.8 Wh
Nominal Charge Capacity: 3 Ah
Gravimetric Energy Density: 225 Wh/kg
Volumetric Energy Density: 625 Wh/L
Gravimetric Power Density: 1125 W/kg
Volumetric Power Density: 3125 W/L
Max Continuous Charge: 4 A

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Coming soon to Simulate. Details available upon request.

Max Continuous Charge (C-rate)

1.3 C

Max Continuous Discharge

15 A

Max Continuous Discharge (C-rate)

5 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.5 V

Max Continuous Charge (C-rate)

1.3 C

Max Continuous Discharge

15 A

Max Continuous Discharge (C-rate)

5 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.5 V
