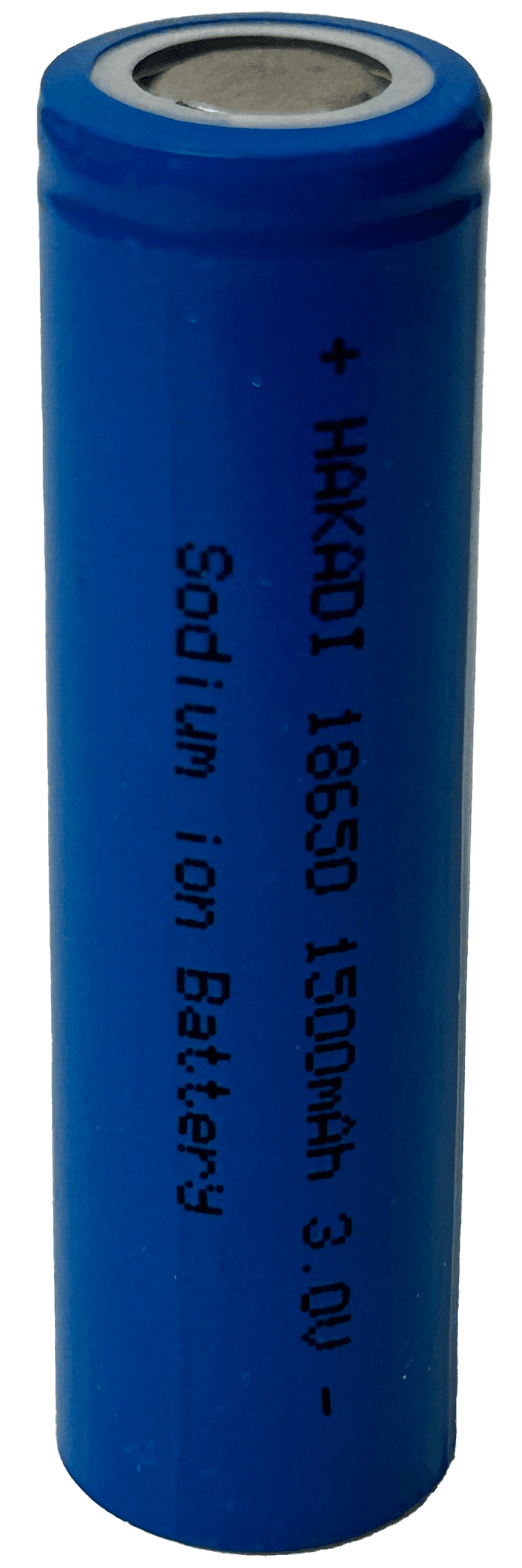

18650-1500mAh

Hakadi

Coming Soon

18650-1500mAh

Hakadi

Coming Soon

Overview

Manufacturer: Hakadi
Model: 18650-1500mAh
Cell Type: Na-ion
Form Factor: Cylindrical 18650
Country of Origin: China
Release Year: 2023

Thermal

Minimum Charge Temperature: -
Maximum Charge Temperature: -
Minimum Discharge Temperature: -
Maximum Discharge Temperature: -

Mechanical

Mass: 37.5 g
Volume: 16.54 cm³
Height: 65 mm
Diameter: 18 mm

Chemistry

Positive Electrode Material: -
Negative Electrode Material: -

Electrical

Nominal Energy Capacity: 4.65 Wh
Nominal Charge Capacity: 1.5 Ah
Gravimetric Energy Density: 124 Wh/kg
Volumetric Energy Density: 281 Wh/L
Gravimetric Power Density: 372 W/kg
Volumetric Power Density: 843 W/L
Max Continuous Charge: 1.5 A

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Coming soon to Simulate. Details available upon request.

Overview

Manufacturer: Hakadi
Model: 18650-1500mAh
Cell Type: Na-ion
Form Factor: Cylindrical 18650
Country of Origin: China
Release Year: 2023

Thermal

Minimum Charge Temperature: -
Maximum Charge Temperature: -
Minimum Discharge Temperature: -
Maximum Discharge Temperature: -

Mechanical

Mass: 37.5 g
Volume: 16.54 cm³
Height: 65 mm
Diameter: 18 mm

Chemistry

Positive Electrode Material: -
Negative Electrode Material: -

Electrical

Nominal Energy Capacity: 4.65 Wh
Nominal Charge Capacity: 1.5 Ah
Gravimetric Energy Density: 124 Wh/kg
Volumetric Energy Density: 281 Wh/L
Gravimetric Power Density: 372 W/kg
Volumetric Power Density: 843 W/L
Max Continuous Charge: 1.5 A

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Coming soon to Simulate. Details available upon request.

Max Continuous Charge (C-rate)

1 C

Max Continuous Discharge

4.5 A

Max Continuous Discharge (C-rate)

3 C

Voltage

Nominal Voltage

3.1 V

Max Voltage

4.1 V

Min Voltage

1.5 V

Max Continuous Charge (C-rate)

1 C

Max Continuous Discharge

4.5 A

Max Continuous Discharge (C-rate)

3 C

Voltage

Nominal Voltage

3.1 V

Max Voltage

4.1 V

Min Voltage

1.5 V
