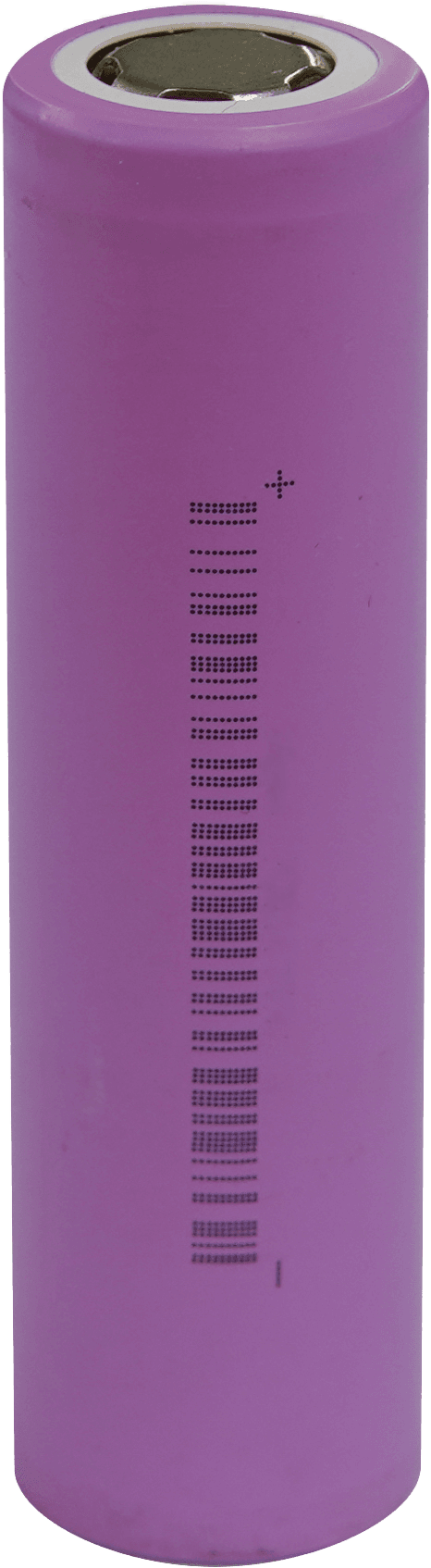

N18650CNP

BAK

Coming Soon

N18650CNP

BAK

Coming Soon

Overview

Manufacturer: BAK
Model: N18650CNP
Cell Type: Li-ion
Form Factor: Cylindrical 18650
Country of Origin: China
Release Year: 2018

Thermal

Minimum Charge Temperature: -
Maximum Charge Temperature: -
Minimum Discharge Temperature: -
Maximum Discharge Temperature: -

Mechanical

Mass: 47 g
Volume: 17.15 cm³
Height: 64.85 mm
Diameter: 18.35 mm

Chemistry

Positive Electrode Material: -
Negative Electrode Material: Graphite

Electrical

Nominal Energy Capacity: 9 Wh
Nominal Charge Capacity: 2.5 Ah
Gravimetric Energy Density: 191 Wh/kg
Volumetric Energy Density: 525 Wh/L
Gravimetric Power Density: 2298 W/kg
Volumetric Power Density: 6297 W/L
Max Continuous Charge: 5 A

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Coming soon to Simulate. Details available upon request.

Overview

Manufacturer: BAK
Model: N18650CNP
Cell Type: Li-ion
Form Factor: Cylindrical 18650
Country of Origin: China
Release Year: 2018

Thermal

Minimum Charge Temperature: -
Maximum Charge Temperature: -
Minimum Discharge Temperature: -
Maximum Discharge Temperature: -

Mechanical

Mass: 47 g
Volume: 17.15 cm³
Height: 64.85 mm
Diameter: 18.35 mm

Chemistry

Positive Electrode Material: -
Negative Electrode Material: Graphite

Electrical

Nominal Energy Capacity: 9 Wh
Nominal Charge Capacity: 2.5 Ah
Gravimetric Energy Density: 191 Wh/kg
Volumetric Energy Density: 525 Wh/L
Gravimetric Power Density: 2298 W/kg
Volumetric Power Density: 6297 W/L
Max Continuous Charge: 5 A

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Coming soon to Simulate. Details available upon request.

Max Continuous Charge (C-rate)

2 C

Max Continuous Discharge

30 A

Max Continuous Discharge (C-rate)

12 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.5 V

Max Continuous Charge (C-rate)

2 C

Max Continuous Discharge

30 A

Max Continuous Discharge (C-rate)

12 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.5 V
