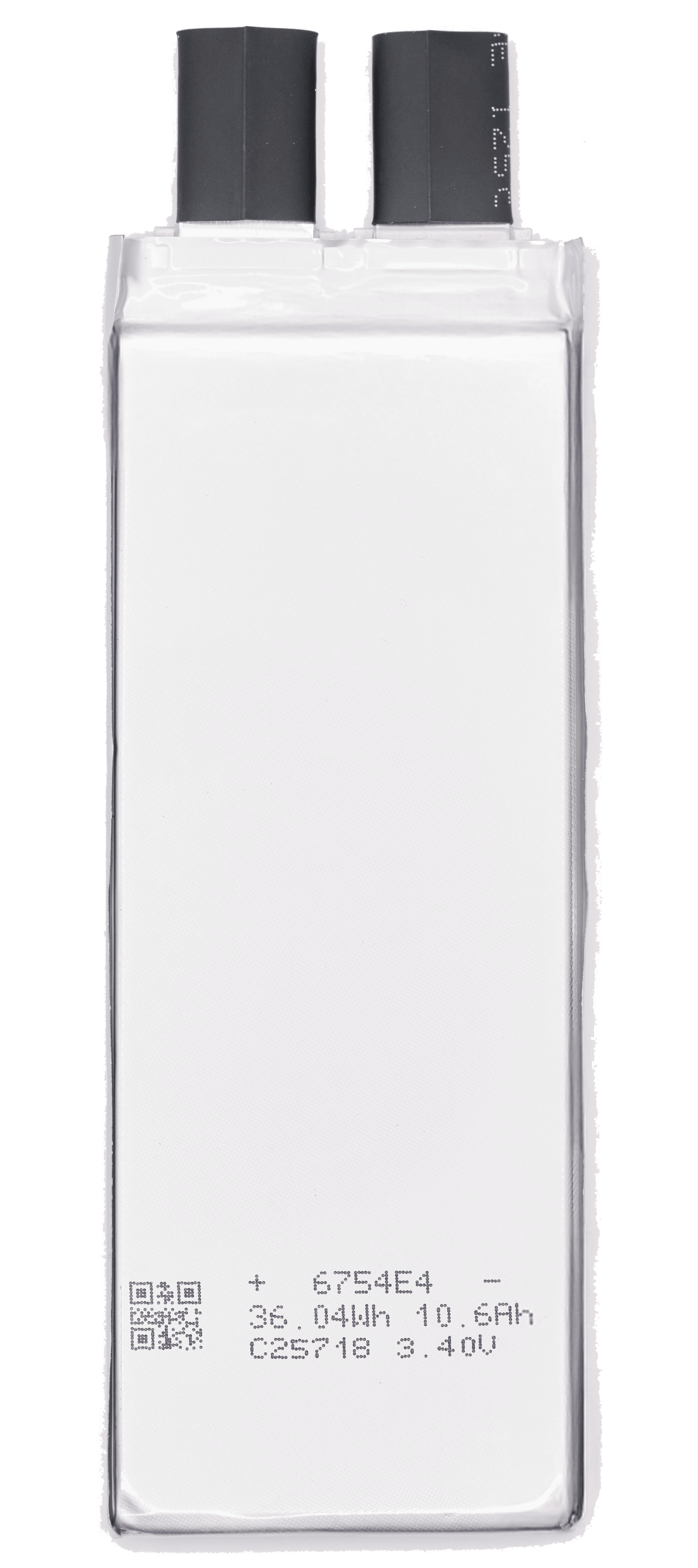

SA08

Amprius

We tear down cells and accurately measure every physical parameter

Book a Call

Overview

Manufacturer

Amprius

Cell Model

SA08

Cell Type

Li-ion

Form Factor

Pouch

Country of Origin

United States

Release Year

-

Thermal

Minimum Charge Temperature

-

Maximum Charge Temperature

-

Maximum Discharge Temperature

-

Minimum Discharge Temperature

-

Mechanical

Mass

108.5 g

Volume

50.28 cm³

Length

144.6 mm

Width

53.5 mm

Thickness

6.5 mm

Chemistry

Positive Electrode Material

Ni-based

Negative Electrode Material

Graphite/Si additive

Electrical

Energy

Volumetric Energy Density

730 Wh/L

Gravimetric Energy Density

338 Wh/kg

Nominal Energy Capacity

36.72 Wh

Nominal Charge Capacity

10.8 Ah

Power

Volumetric Power Density

3652 W/L

Gravimetric Power Density

1692 W/kg

Current

Max Continuous Charge

32.4 A

Max Continuous Charge (C-rate)

3 C

Max Continuous Discharge

54 A

Max Continuous Discharge (C-rate)

5 C

Voltage

Nominal Voltage

3.4 V

Max Voltage

4.2 V

Min Voltage

2.5 V

Fixed Rate

0.5 C1 C3 C

Load Type

Operation

Initial SOC [%]

Initial Cell Temperature [°C]

Heat Transfer Coefficient [W/m²K]
