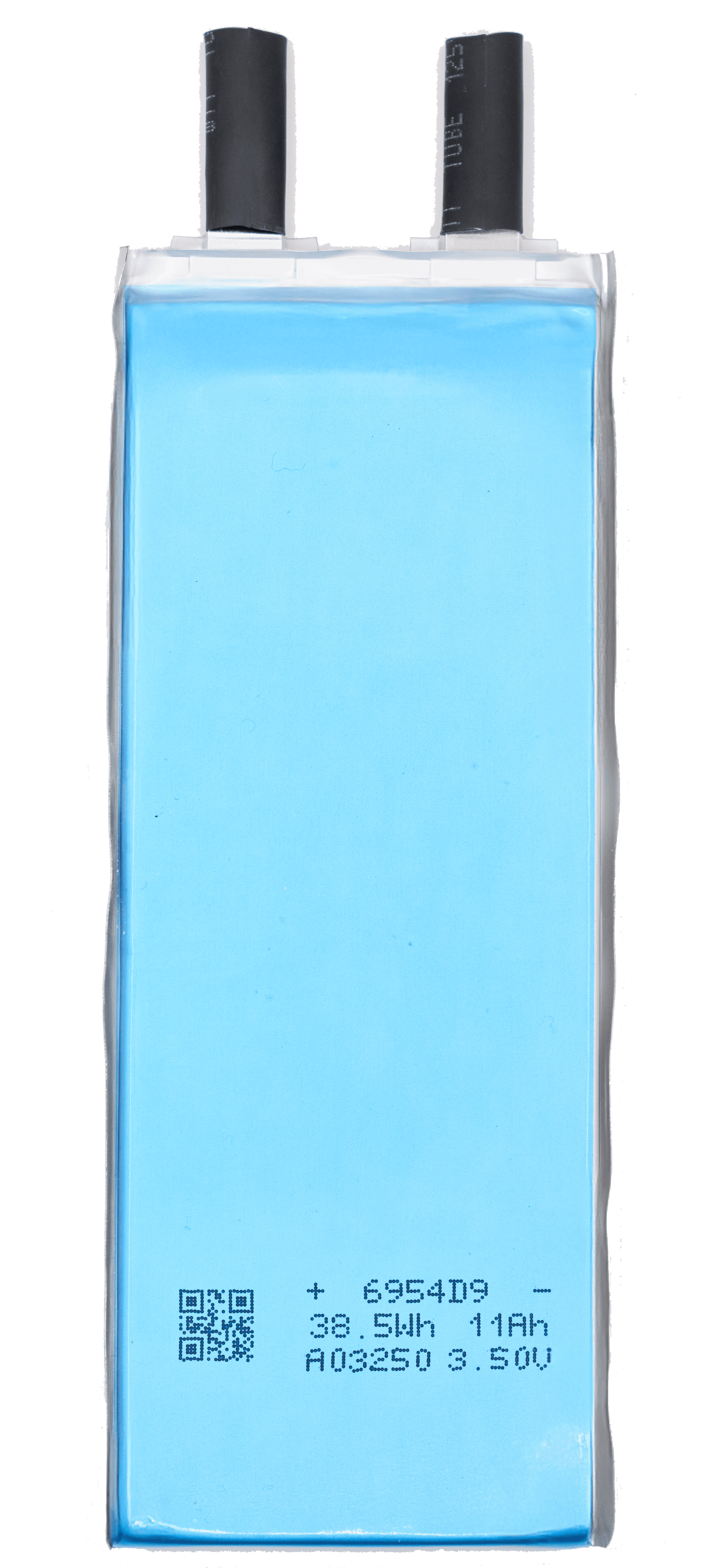

SA02

Amprius

Coming Soon

We tear down cells and accurately measure every physical parameter

Book a Call

Overview

Manufacturer

Amprius

Cell Model

SA02

Cell Type

Li-ion

Form Factor

Pouch

Country of Origin

United States

Release Year

-

Thermal

Minimum Charge Temperature

-

Maximum Charge Temperature

-

Maximum Discharge Temperature

-

Minimum Discharge Temperature

-

Mechanical

Mass

113.2 g

Volume

52.05 cm³

Length

139.7 mm

Width

53.3 mm

Thickness

6.99 mm

Chemistry

Positive Electrode Material

Ni-based

Negative Electrode Material

Graphite/Si additive

Electrical

Energy

Volumetric Energy Density

740 Wh/L

Gravimetric Energy Density

340 Wh/kg

Nominal Energy Capacity

38.5 Wh

Nominal Charge Capacity

11 Ah

Power

Volumetric Power Density

2219 W/L

Gravimetric Power Density

1020 W/kg

Current

Max Continuous Charge

11 A

Max Continuous Charge (C-rate)

1 C

Max Continuous Discharge

33 A

Max Continuous Discharge (C-rate)

3 C

Voltage

Nominal Voltage

3.5 V

Max Voltage

4.2 V

Min Voltage

2.5 V

This cell is coming to Simulate soon - want to access cell insights now?

Speak with our team to access this advanced simulation output

Fixed Rate

0.5 C1 C3 C

Load Type

Operation

Initial SOC [%]

Initial Cell Temperature [°C]

Heat Transfer Coefficient [W/m²K]
