40XG

Tenpower

Premium Cell

We tear down cells and accurately measure every physical parameter

Book a Call

Overview

Manufacturer

Tenpower

Cell Model

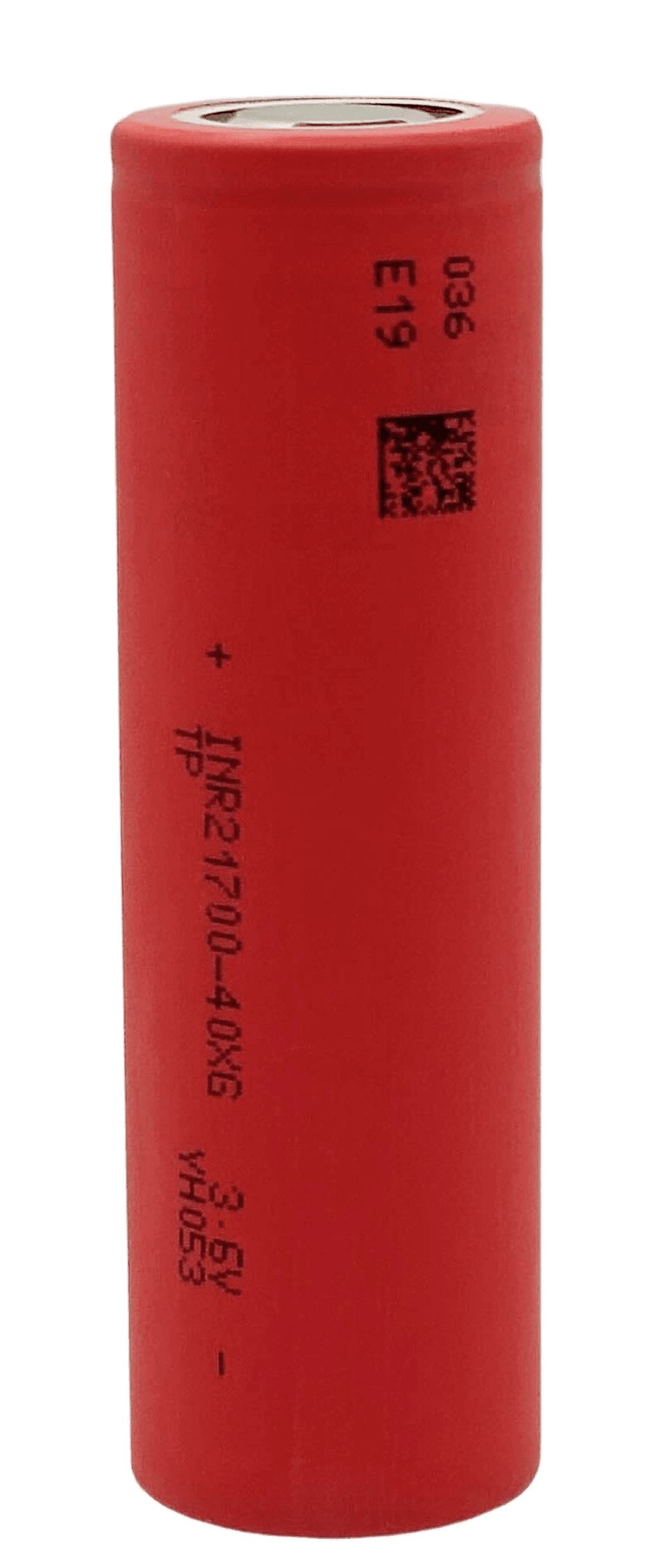

INR21700-40XG

Cell Type

Li-ion

Form Factor

Cylindrical 21700

Country of Origin

China

Release Year

-

Thermal

Minimum Charge Temperature

-

Maximum Charge Temperature

-

Maximum Discharge Temperature

-

Minimum Discharge Temperature

-

Mechanical

Mass

68 g

Volume

25.05 cm³

Height

70.5 mm

Diameter

21.5 mm

Chemistry

Positive Electrode Material

Ni-based

Negative Electrode Material

Graphite/Si additive

Electrical

Energy

Volumetric Energy Density

575 Wh/L

Gravimetric Energy Density

212 Wh/kg

Nominal Energy Capacity

14.4 Wh

Nominal Charge Capacity

4 Ah

Power

Volumetric Power Density

12934 W/L

Gravimetric Power Density

4765 W/kg

Current

Max Continuous Charge

16 A

Max Continuous Charge (C-rate)

4 C

Max Continuous Discharge

90 A

Max Continuous Discharge (C-rate)

22.5 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.5 V

Fixed Rate

0.5 C1 C3 C

Load Type

Operation

Initial SOC [%]

Initial Cell Temperature [°C]

Heat Transfer Coefficient [W/m²K]
