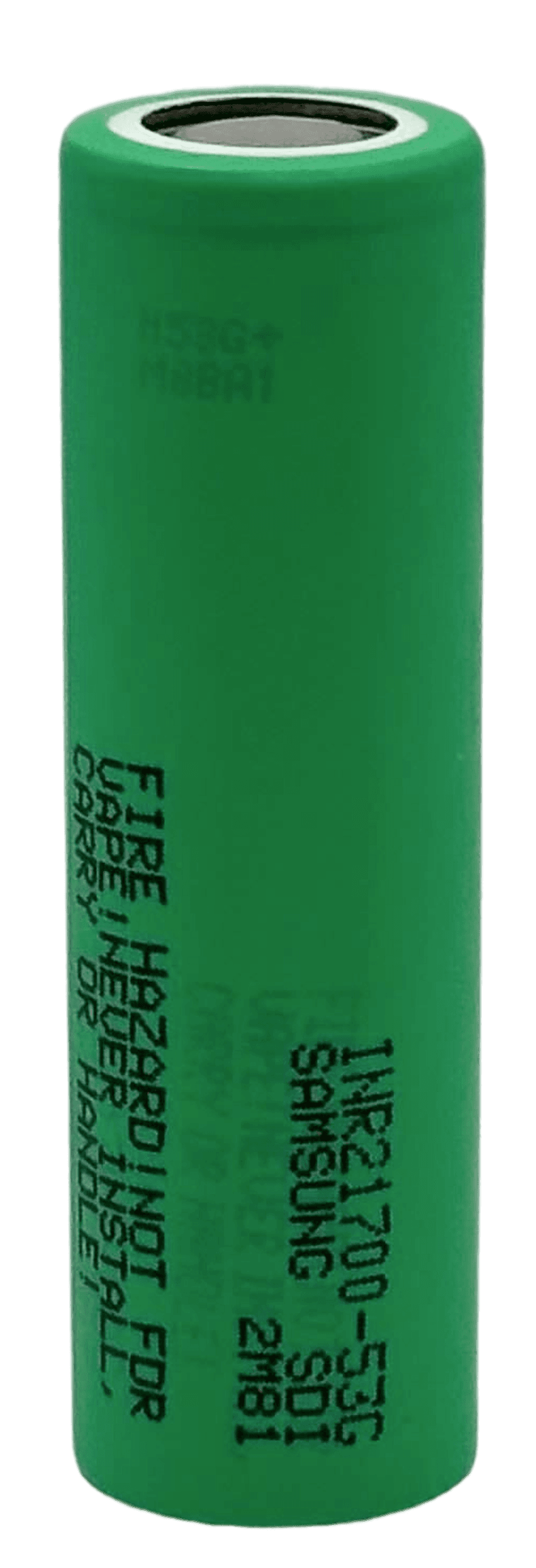

53G1

Samsung

Premium Cell

We tear down cells and accurately measure every physical parameter

Book a Call

Overview

Manufacturer

Samsung

Cell Model

INR21700-53G

Cell Type

Li-ion

Form Factor

Cylindrical 21700

Country of Origin

South Korea

Release Year

2022

Thermal

Minimum Charge Temperature

-

Maximum Charge Temperature

-

Maximum Discharge Temperature

-

Minimum Discharge Temperature

-

Mechanical

Mass

70.5 g

Volume

24.59 cm³

Height

70 mm

Diameter

21.15 mm

Chemistry

Positive Electrode Material

Ni-based

Negative Electrode Material

Graphite

Electrical

Energy

Volumetric Energy Density

782 Wh/L

Gravimetric Energy Density

273 Wh/kg

Nominal Energy Capacity

19.239 Wh

Nominal Charge Capacity

5.3 Ah

Power

Volumetric Power Density

1565 W/L

Gravimetric Power Density

546 W/kg

Current

Max Continuous Charge

5.3 A

Max Continuous Charge (C-rate)

1 C

Max Continuous Discharge

10.6 A

Max Continuous Discharge (C-rate)

2 C

Voltage

Nominal Voltage

3.63 V

Max Voltage

4.2 V

Min Voltage

2.5 V

C-Rate

0.5 C

1 C

3 C

Cells

INR21700-53G

Samsung

Fixed Rate

0.5 C1 C3 C

Load Type

Operation

Initial SOC [%]

Initial Cell Temperature [°C]

Heat Transfer Coefficient [W/m²K]
