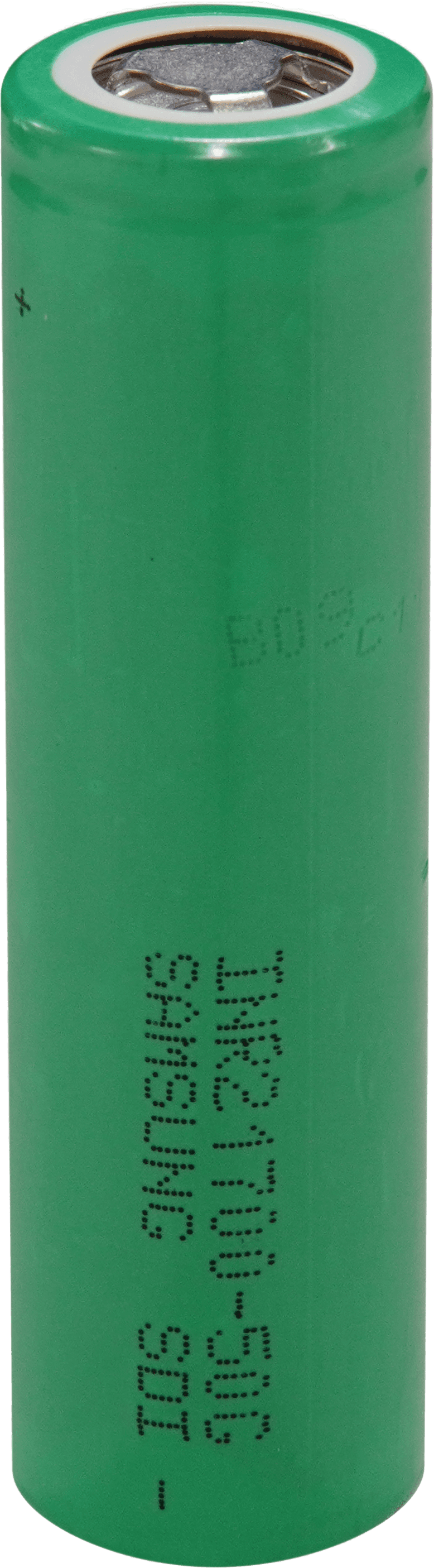

50G

Samsung

Coming Soon

We tear down cells and accurately measure every physical parameter

Book a Call

Overview

Manufacturer

Samsung

Cell Model

INR21700-50G

Cell Type

Li-ion

Form Factor

Cylindrical 21700

Country of Origin

South Korea

Release Year

2018

Thermal

Minimum Charge Temperature

-

Maximum Charge Temperature

-

Maximum Discharge Temperature

-

Minimum Discharge Temperature

-

Mechanical

Mass

69.5 g

Volume

24.53 cm³

Height

70.15 mm

Diameter

21.1 mm

Chemistry

Positive Electrode Material

Ni-based (high Ni)

Negative Electrode Material

Graphite/Si additive

Electrical

Energy

Volumetric Energy Density

718 Wh/L

Gravimetric Energy Density

253 Wh/kg

Nominal Energy Capacity

17.61 Wh

Nominal Charge Capacity

4.85 Ah

Power

Volumetric Power Density

1435 W/L

Gravimetric Power Density

507 W/kg

Current

Max Continuous Charge

4.85 A

Max Continuous Charge (C-rate)

1 C

Max Continuous Discharge

9.7 A

Max Continuous Discharge (C-rate)

2 C

Voltage

Nominal Voltage

3.63 V

Max Voltage

4.2 V

Min Voltage

2.5 V
