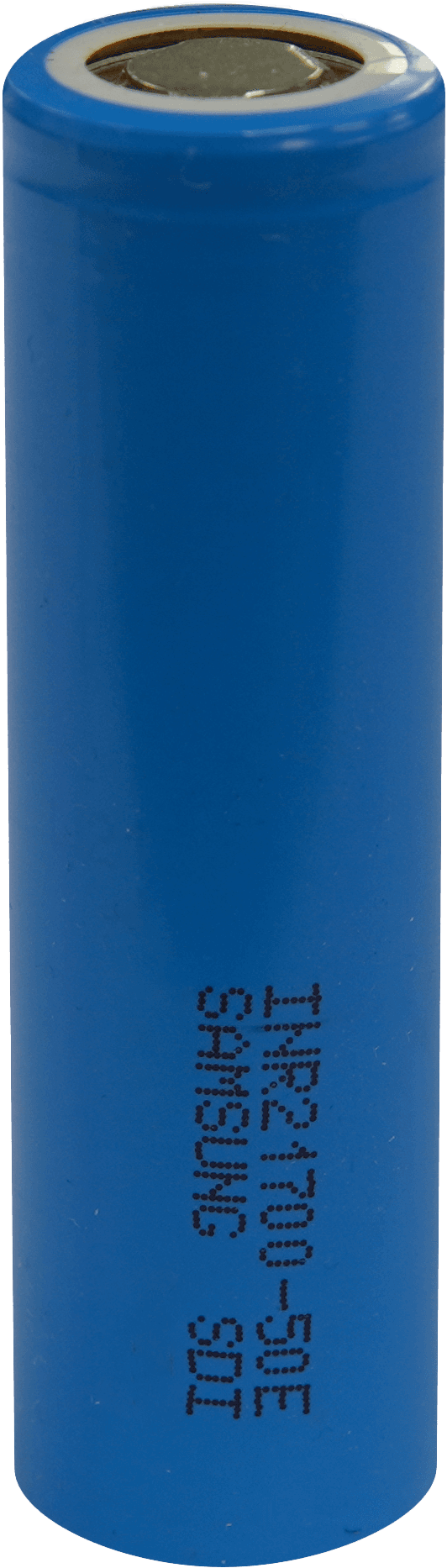

50E

Samsung

Premium Cell

We tear down cells and accurately measure every physical parameter

Book a Call

Overview

Manufacturer

Samsung

Cell Model

INR21700-50E

Cell Type

Li-ion

Form Factor

Cylindrical 21700

Country of Origin

South Korea

Release Year

2017

Thermal

Minimum Charge Temperature

-

Maximum Charge Temperature

-

Maximum Discharge Temperature

-

Minimum Discharge Temperature

-

Mechanical

Mass

69 g

Volume

22.8 cm³

Height

70.8 mm

Diameter

20.25 mm

Chemistry

Positive Electrode Material

Ni-based

Negative Electrode Material

Graphite

Electrical

Energy

Volumetric Energy Density

774 Wh/L

Gravimetric Energy Density

256 Wh/kg

Nominal Energy Capacity

17.64 Wh

Nominal Charge Capacity

4.9 Ah

Power

Volumetric Power Density

1547 W/L

Gravimetric Power Density

511 W/kg

Current

Max Continuous Charge

4.9 A

Max Continuous Charge (C-rate)

1 C

Max Continuous Discharge

9.8 A

Max Continuous Discharge (C-rate)

2 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.5 V

Fixed Rate

0.5 C1 C3 C

Load Type

Operation

Initial SOC [%]

Initial Cell Temperature [°C]

Heat Transfer Coefficient [W/m²K]

Want to edit the inputs and run your own Drive Cycles?
