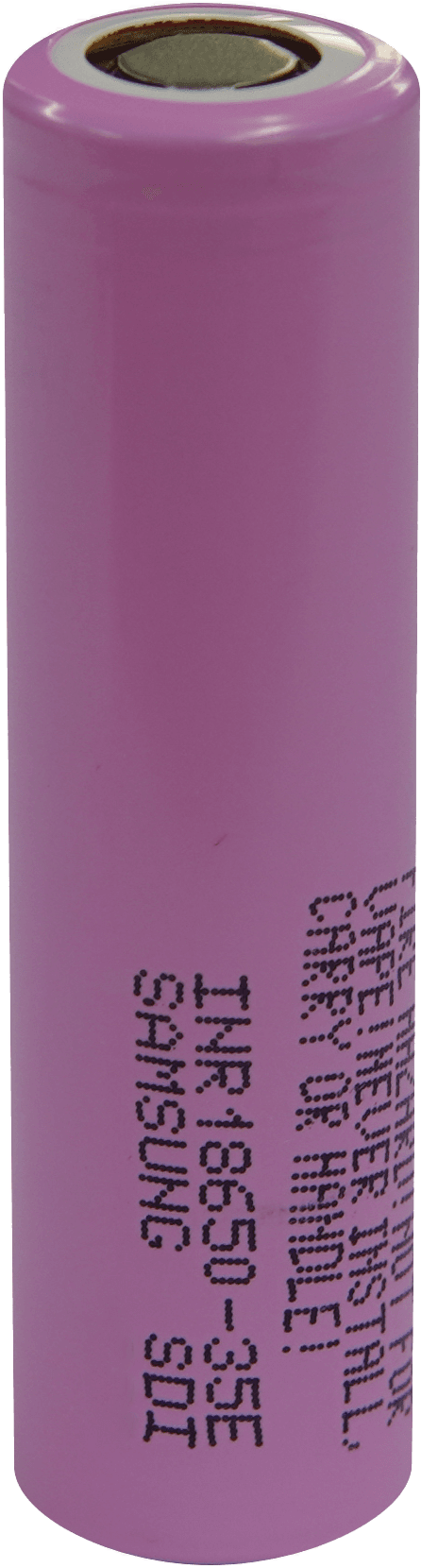

35E

Samsung

Coming Soon

We tear down cells and accurately measure every physical parameter

Book a Call

Overview

Manufacturer

Samsung

Cell Model

INR18650-35E

Cell Type

Li-ion

Form Factor

Cylindrical 18650

Country of Origin

South Korea

Release Year

2015

Thermal

Minimum Charge Temperature

-

Maximum Charge Temperature

-

Maximum Discharge Temperature

-

Minimum Discharge Temperature

-

Mechanical

Mass

50 g

Volume

17.63 cm³

Height

65.25 mm

Diameter

18.55 mm

Chemistry

Positive Electrode Material

Ni-based

Negative Electrode Material

-

Electrical

Energy

Volumetric Energy Density

694 Wh/L

Gravimetric Energy Density

245 Wh/kg

Nominal Energy Capacity

12.24 Wh

Nominal Charge Capacity

3.4 Ah

Power

Volumetric Power Density

1634 W/L

Gravimetric Power Density

576 W/kg

Current

Max Continuous Charge

2 A

Max Continuous Charge (C-rate)

0.6 C

Max Continuous Discharge

8 A

Max Continuous Discharge (C-rate)

2.4 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.65 V
