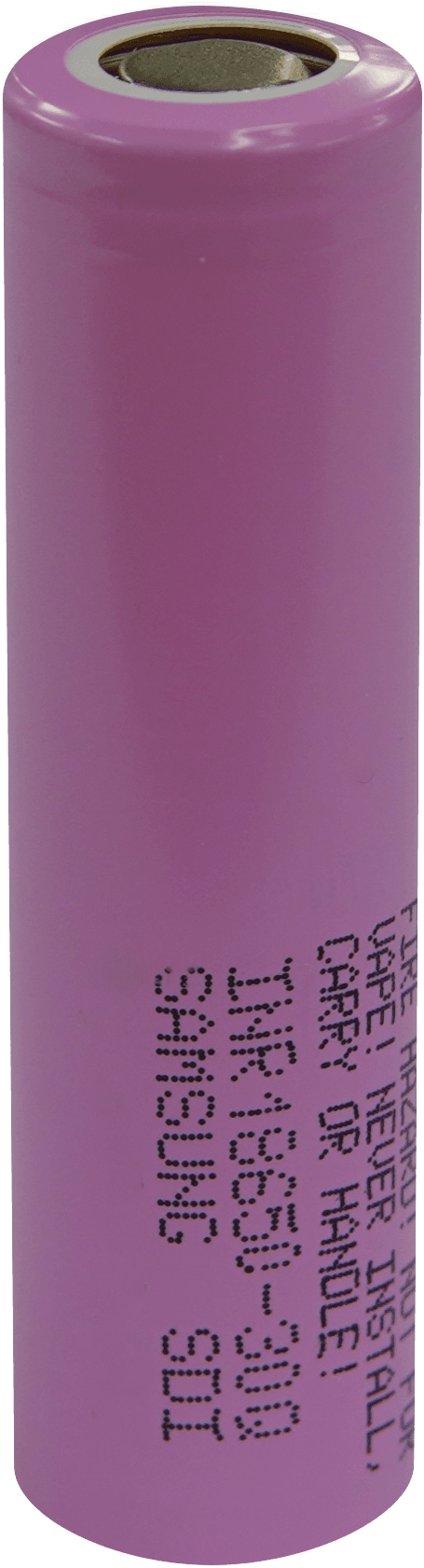

30Q

Samsung

Coming Soon

We tear down cells and accurately measure every physical parameter

Book a Call

Overview

Manufacturer

Samsung

Cell Model

INR18650-30Q

Cell Type

Li-ion

Form Factor

Cylindrical 18650

Country of Origin

South Korea

Release Year

2015

Thermal

Minimum Charge Temperature

-

Maximum Charge Temperature

-

Maximum Discharge Temperature

-

Minimum Discharge Temperature

-

Mechanical

Mass

48 g

Volume

17.28 cm³

Height

65 mm

Diameter

18.4 mm

Chemistry

Positive Electrode Material

Ni-based

Negative Electrode Material

Graphite

Electrical

Energy

Volumetric Energy Density

625 Wh/L

Gravimetric Energy Density

225 Wh/kg

Nominal Energy Capacity

10.8 Wh

Nominal Charge Capacity

3 Ah

Power

Volumetric Power Density

3125 W/L

Gravimetric Power Density

1125 W/kg

Current

Max Continuous Charge

4 A

Max Continuous Charge (C-rate)

1.3 C

Max Continuous Discharge

15 A

Max Continuous Discharge (C-rate)

5 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.5 V
