RC41 | Voltt

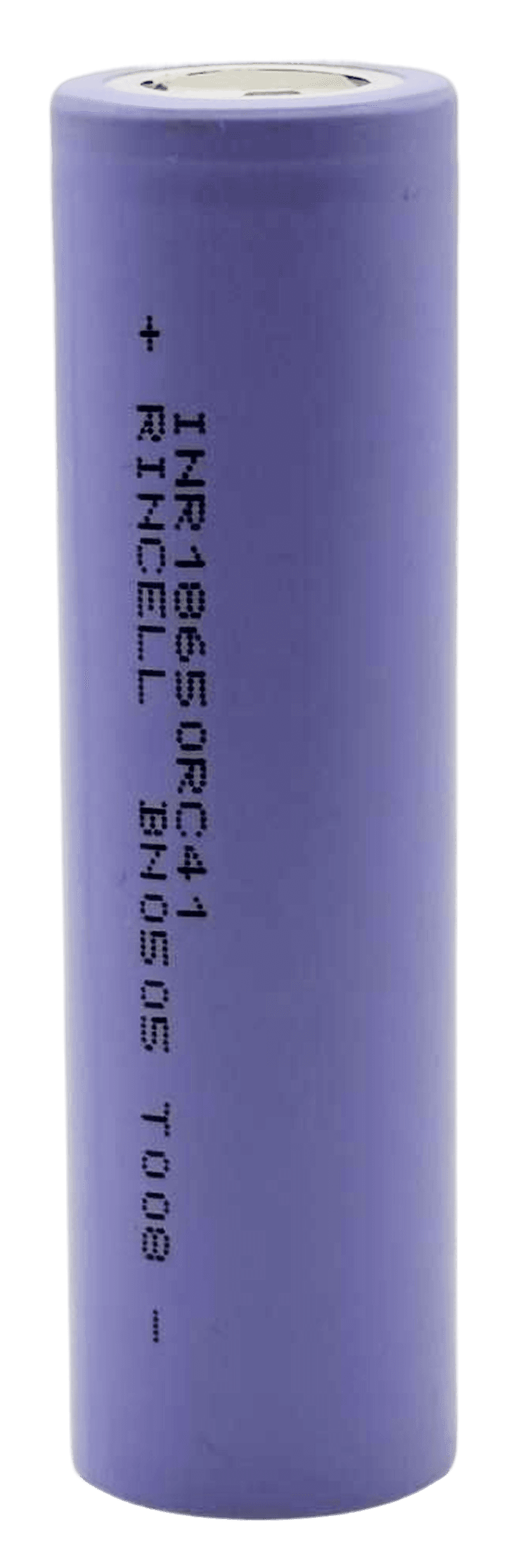

RC41

Rincell

Premium Cell

We tear down cells and accurately measure every physical parameter

Book a Call

Overview

Manufacturer

Rincell

Cell Model

INR18650RC41

Cell Type

Li-ion

Form Factor

Cylindrical 18650

Country of Origin

United States

Release Year

2024

Thermal

Minimum Charge Temperature

-

Maximum Charge Temperature

-

Maximum Discharge Temperature

-

Minimum Discharge Temperature

-

Mechanical

Mass

48.5 g

Volume

17.53 cm³

Height

65.2 mm

Diameter

18.5 mm

Chemistry

Positive Electrode Material

Ni-based (high Ni)

Negative Electrode Material

Graphite/Si additive

Electrical

Energy

Volumetric Energy Density

807 Wh/L

Gravimetric Energy Density

292 Wh/kg

Nominal Energy Capacity

14.15 Wh

Nominal Charge Capacity

4.1 Ah

Power

Volumetric Power Density

2421 W/L

Gravimetric Power Density

875 W/kg

Current

Max Continuous Charge

12.3 A

Max Continuous Charge (C-rate)

3 C

Max Continuous Discharge

12.3 A

Max Continuous Discharge (C-rate)

3 C

Voltage

Nominal Voltage

3.45 V

Max Voltage

4.2 V

Min Voltage

2.5 V

Fixed Rate

0.5 C1 C3 C

Load Type

Operation

Initial SOC [%]

Initial Cell Temperature [°C]

Heat Transfer Coefficient [W/m²K]

Want to edit the inputs and run your own Drive Cycles?

Loading...
