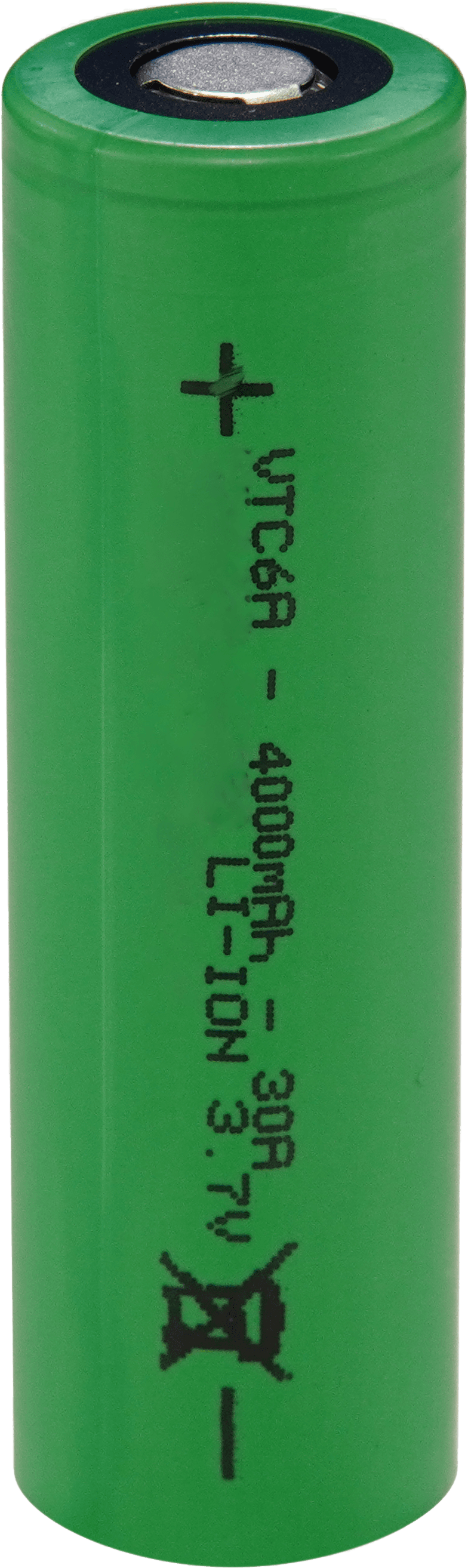

VTC6A

Murata

Coming Soon

VTC6A

Murata

Coming Soon

Overview

Manufacturer: Murata
Model: US21700VTC6A
Cell Type: Li-ion
Form Factor: Cylindrical 21700
Country of Origin: Japan
Release Year: 2018

Thermal

Minimum Charge Temperature: -
Maximum Charge Temperature: -
Minimum Discharge Temperature: -
Maximum Discharge Temperature: -

Mechanical

Mass: 72.7 g
Volume: 24.99 cm³
Height: 69.8 mm
Diameter: 21.35 mm

Chemistry

Positive Electrode Material: Ni-based
Negative Electrode Material: -

Electrical

Nominal Energy Capacity: 14.44 Wh
Nominal Charge Capacity: 4.1 Ah
Gravimetric Energy Density: 199 Wh/kg
Volumetric Energy Density: 578 Wh/L
Gravimetric Power Density: 1981 W/kg
Volumetric Power Density: 5762 W/L
Max Continuous Charge: 9 A

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Coming soon to Simulate. Details available upon request.

Overview

Manufacturer: Murata
Model: US21700VTC6A
Cell Type: Li-ion
Form Factor: Cylindrical 21700
Country of Origin: Japan
Release Year: 2018

Thermal

Minimum Charge Temperature: -
Maximum Charge Temperature: -
Minimum Discharge Temperature: -
Maximum Discharge Temperature: -

Mechanical

Mass: 72.7 g
Volume: 24.99 cm³
Height: 69.8 mm
Diameter: 21.35 mm

Chemistry

Positive Electrode Material: Ni-based
Negative Electrode Material: -

Electrical

Nominal Energy Capacity: 14.44 Wh
Nominal Charge Capacity: 4.1 Ah
Gravimetric Energy Density: 199 Wh/kg
Volumetric Energy Density: 578 Wh/L
Gravimetric Power Density: 1981 W/kg
Volumetric Power Density: 5762 W/L
Max Continuous Charge: 9 A

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Coming soon to Simulate. Details available upon request.

Max Continuous Charge (C-rate)

2.2 C

Max Continuous Discharge

40 A

Max Continuous Discharge (C-rate)

9.8 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.5 V

Max Continuous Charge (C-rate)

2.2 C

Max Continuous Discharge

40 A

Max Continuous Discharge (C-rate)

9.8 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.5 V
