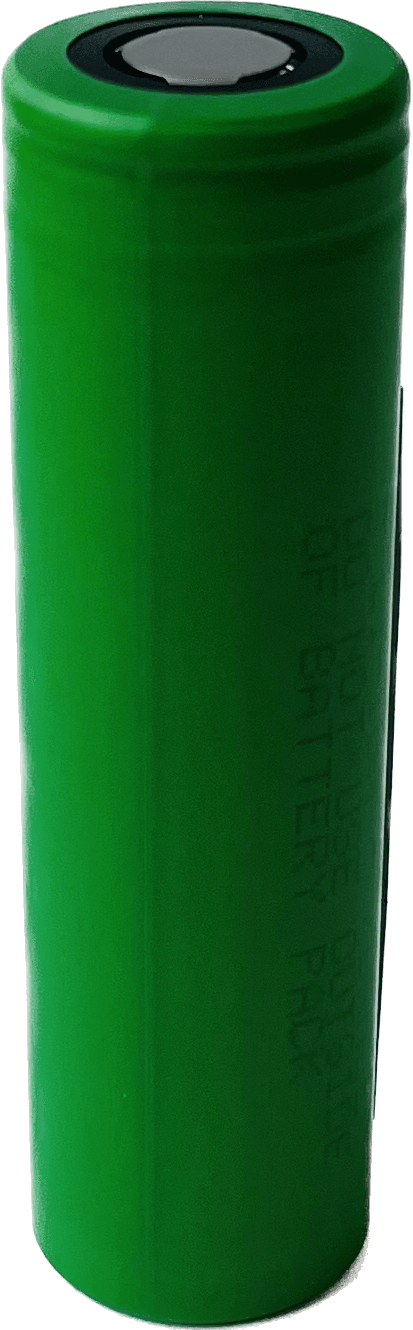

VTC6

Murata

Coming Soon

VTC6

Murata

Coming Soon

Overview

Manufacturer: Murata
Model: US18650VTC6
Cell Type: Li-ion
Form Factor: Cylindrical 18650
Country of Origin: Japan
Release Year: 2015

Thermal

Minimum Charge Temperature: -
Maximum Charge Temperature: -
Minimum Discharge Temperature: -
Maximum Discharge Temperature: -

Mechanical

Mass: 46.6 g
Volume: 17.19 cm³
Height: 65 mm
Diameter: 18.35 mm

Chemistry

Positive Electrode Material: Ni-based
Negative Electrode Material: Graphite

Electrical

Nominal Energy Capacity: 11.232 Wh
Nominal Charge Capacity: 3.12 Ah
Gravimetric Energy Density: 241 Wh/kg
Volumetric Energy Density: 653 Wh/L
Gravimetric Power Density: 2318 W/kg
Volumetric Power Density: 6283 W/L
Max Continuous Charge: 5 A

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Coming soon to Simulate. Details available upon request.

Overview

Manufacturer: Murata
Model: US18650VTC6
Cell Type: Li-ion
Form Factor: Cylindrical 18650
Country of Origin: Japan
Release Year: 2015

Thermal

Minimum Charge Temperature: -
Maximum Charge Temperature: -
Minimum Discharge Temperature: -
Maximum Discharge Temperature: -

Mechanical

Mass: 46.6 g
Volume: 17.19 cm³
Height: 65 mm
Diameter: 18.35 mm

Chemistry

Positive Electrode Material: Ni-based
Negative Electrode Material: Graphite

Electrical

Nominal Energy Capacity: 11.232 Wh
Nominal Charge Capacity: 3.12 Ah
Gravimetric Energy Density: 241 Wh/kg
Volumetric Energy Density: 653 Wh/L
Gravimetric Power Density: 2318 W/kg
Volumetric Power Density: 6283 W/L
Max Continuous Charge: 5 A

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Coming soon to Simulate. Details available upon request.

Max Continuous Charge (C-rate)

1.6 C

Max Continuous Discharge

30 A

Max Continuous Discharge (C-rate)

9.6 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2 V

Max Continuous Charge (C-rate)

1.6 C

Max Continuous Discharge

30 A

Max Continuous Discharge (C-rate)

9.6 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2 V
