P60C | Voltt

P60C

Molicel

Premium Cell

We tear down cells and accurately measure every physical parameter

Book a Call

Overview

Manufacturer

Molicel

Cell Model

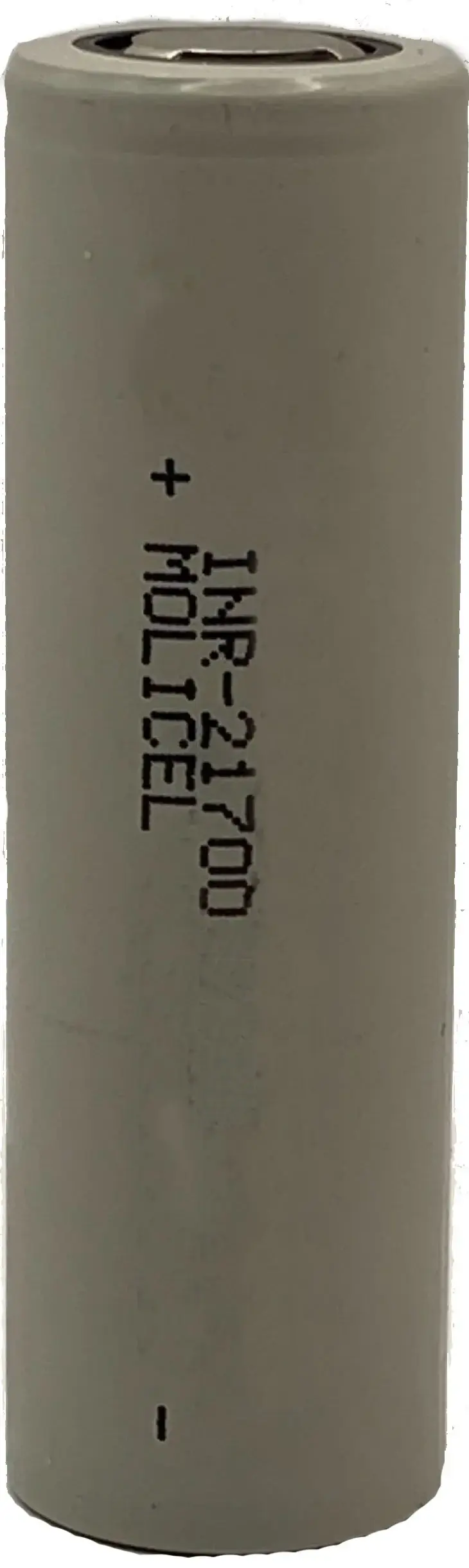

INR-21700-P60C

Cell Type

Li-ion

Form Factor

Cylindrical 21700

Country of Origin

Taiwan

Release Year

2025

Thermal

Minimum Charge Temperature

-

Maximum Charge Temperature

-

Maximum Discharge Temperature

-

Minimum Discharge Temperature

-

Mechanical

Mass

75 g

Volume

25.11 cm³

Height

70.13 mm

Diameter

21.35 mm

Chemistry

Positive Electrode Material

Ni-based

Negative Electrode Material

Graphite

Electrical

Energy

Volumetric Energy Density

860 Wh/L

Gravimetric Energy Density

288 Wh/kg

Nominal Energy Capacity

21.6 Wh

Nominal Charge Capacity

6 Ah

Power

Volumetric Power Density

14337 W/L

Gravimetric Power Density

4800 W/kg

Current

Max Continuous Charge

30 A

Max Continuous Charge (C-rate)

5 C

Max Continuous Discharge

100 A

Max Continuous Discharge (C-rate)

16.7 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.5 V

Fixed Rate

0.5 C1 C3 C

Load Type

Operation

Initial SOC [%]

Initial Cell Temperature [°C]

Heat Transfer Coefficient [W/m²K]

Want to edit the inputs and run your own Drive Cycles?

Loading...
