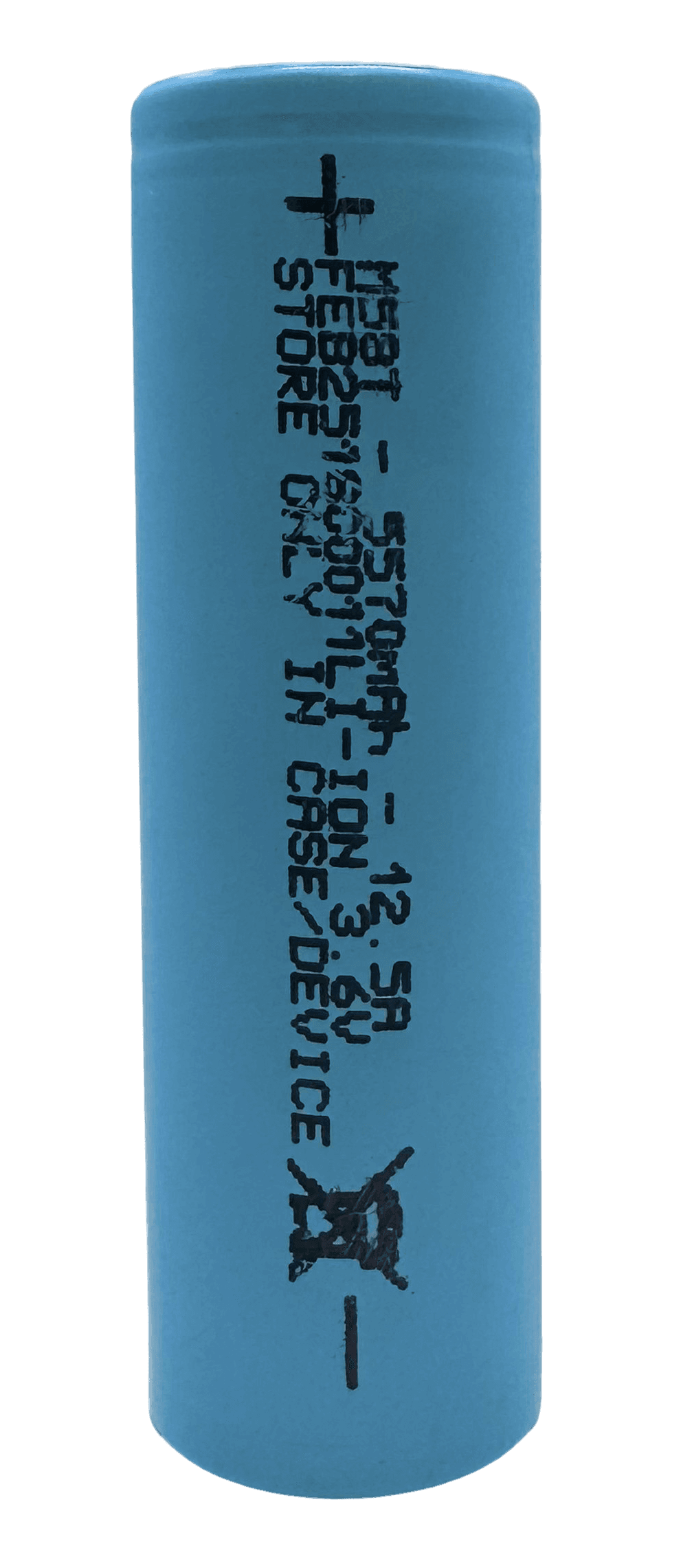

M58T | Voltt

M58T

LG Chem

Premium Cell

We tear down cells and accurately measure every physical parameter

Book a Call

Overview

Manufacturer

LG Chem

Cell Model

INR21700-M58T

Cell Type

Li-ion

Form Factor

Cylindrical 21700

Country of Origin

South Korea

Release Year

2022

Thermal

Minimum Charge Temperature

-

Maximum Charge Temperature

-

Maximum Discharge Temperature

-

Minimum Discharge Temperature

-

Mechanical

Mass

73.2 g

Volume

26.5 cm³

Height

71 mm

Diameter

21.8 mm

Chemistry

Positive Electrode Material

Ni-based

Negative Electrode Material

Graphite

Electrical

Energy

Volumetric Energy Density

755 Wh/L

Gravimetric Energy Density

273 Wh/kg

Nominal Energy Capacity

20 Wh

Nominal Charge Capacity

5.57 Ah

Power

Volumetric Power Density

1693 W/L

Gravimetric Power Density

613 W/kg

Current

Max Continuous Charge

2.7 A

Max Continuous Charge (C-rate)

0.5 C

Max Continuous Discharge

12.5 A

Max Continuous Discharge (C-rate)

2.2 C

Voltage

Nominal Voltage

3.59 V

Max Voltage

4.2 V

Min Voltage

2.5 V

Fixed Rate

0.5 C1 C3 C

Load Type

Operation

Initial SOC [%]

Initial Cell Temperature [°C]

Heat Transfer Coefficient [W/m²K]

Want to edit the inputs and run your own Drive Cycles?
