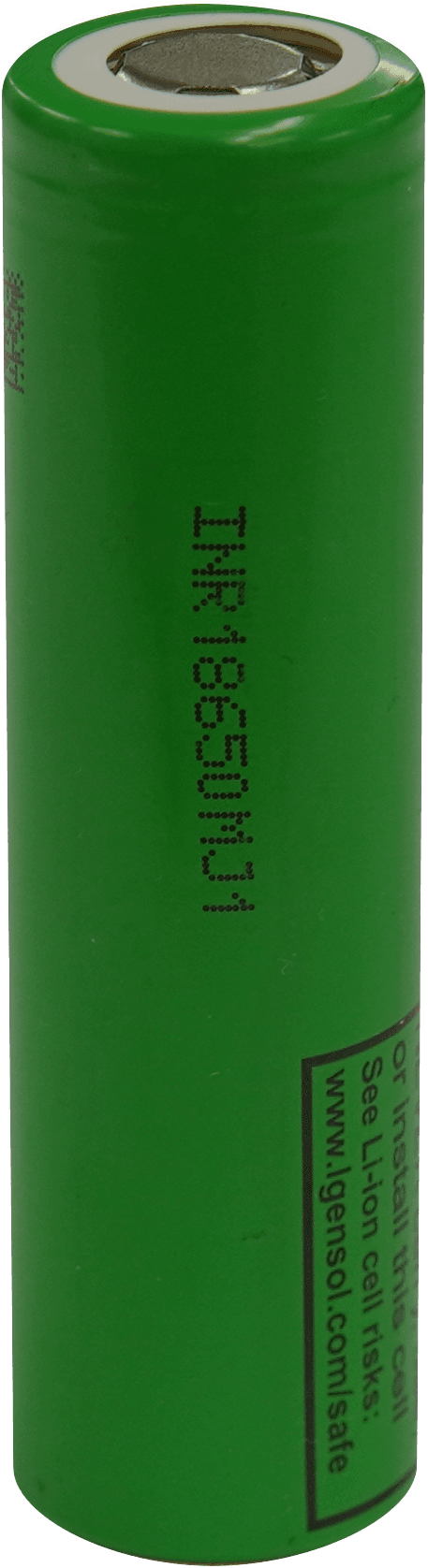

MJ1

LG Chem

Premium Cell

We tear down cells and accurately measure every physical parameter

Book a Call

Overview

Manufacturer

LG Chem

Cell Model

INR18650-MJ1

Cell Type

Li-ion

Form Factor

Cylindrical 18650

Country of Origin

South Korea

Release Year

2014

Thermal

Minimum Charge Temperature

-

Maximum Charge Temperature

-

Maximum Discharge Temperature

-

Minimum Discharge Temperature

-

Mechanical

Mass

49 g

Volume

17.28 cm³

Height

65 mm

Diameter

18.4 mm

Chemistry

Positive Electrode Material

Ni-based (high Ni)

Negative Electrode Material

Graphite/Si additive

Electrical

Energy

Volumetric Energy Density

736 Wh/L

Gravimetric Energy Density

260 Wh/kg

Nominal Energy Capacity

12.72 Wh

Nominal Charge Capacity

3.5 Ah

Power

Volumetric Power Density

2104 W/L

Gravimetric Power Density

742 W/kg

Current

Max Continuous Charge

3.4 A

Max Continuous Charge (C-rate)

1 C

Max Continuous Discharge

10 A

Max Continuous Discharge (C-rate)

2.9 C

Voltage

Nominal Voltage

3.635 V

Max Voltage

4.2 V

Min Voltage

2.5 V

Fixed Rate

0.5 C1 C3 C

Load Type

Operation

Initial SOC [%]

Initial Cell Temperature [°C]

Heat Transfer Coefficient [W/m²K]

Want to edit the inputs and run your own Drive Cycles?
