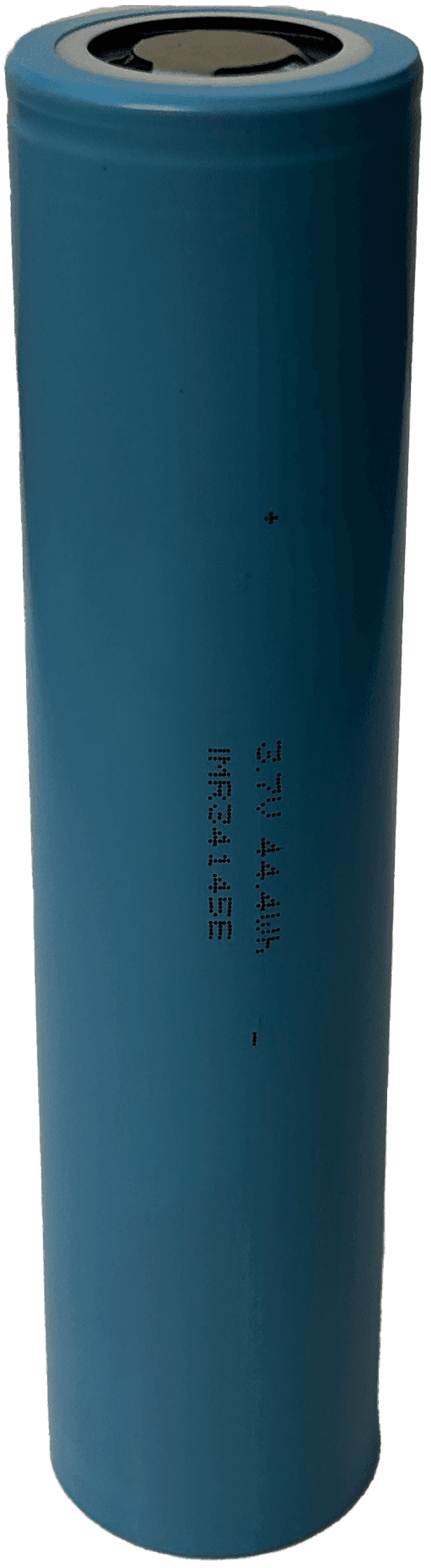

E3412B1

KTECH

Coming Soon

We tear down cells and accurately measure every physical parameter

Book a Call

Overview

Manufacturer

KTECH

Cell Model

IMR34145-E3412B1

Cell Type

Li-ion

Form Factor

Cylindrical 34145

Country of Origin

China

Release Year

2023

Thermal

Minimum Charge Temperature

-

Maximum Charge Temperature

-

Maximum Discharge Temperature

-

Minimum Discharge Temperature

-

Mechanical

Mass

320 g

Volume

131.88 cm³

Height

144.4 mm

Diameter

34.1 mm

Chemistry

Positive Electrode Material

LMFP

Negative Electrode Material

Graphite

Electrical

Energy

Volumetric Energy Density

337 Wh/L

Gravimetric Energy Density

139 Wh/kg

Nominal Energy Capacity

44.4 Wh

Nominal Charge Capacity

12 Ah

Power

Volumetric Power Density

673 W/L

Gravimetric Power Density

278 W/kg

Current

Max Continuous Charge

12 A

Max Continuous Charge (C-rate)

1 C

Max Continuous Discharge

24 A

Max Continuous Discharge (C-rate)

2 C

Voltage

Nominal Voltage

3.7 V

Max Voltage

4.2 V

Min Voltage

2.75 V
