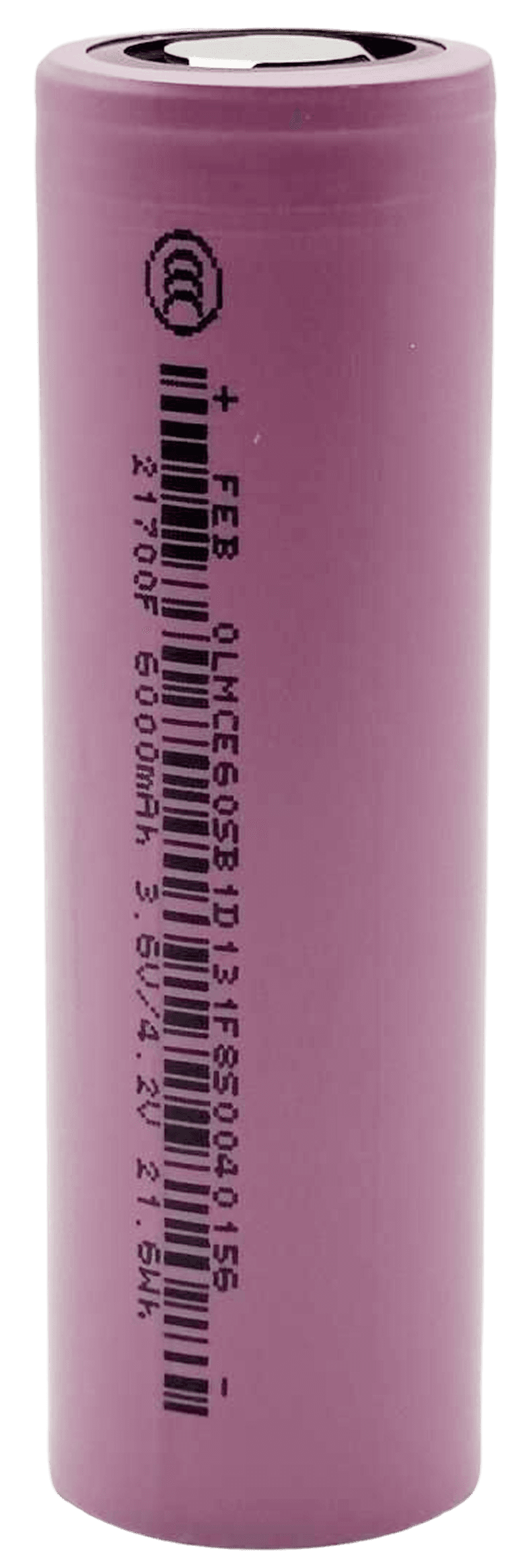

21700 6000mAh

FEB

Coming Soon

Coming soon to Simulate. Details available upon request.

21700 6000mAh

FEB

Coming Soon

Coming soon to Simulate. Details available upon request.

Overview

Manufacturer: FEB
Model: 21700 6000mAh
Cell Type: Li-ion
Form Factor: Cylindrical 21700
Country of Origin: China
Release Year: 2024

Thermal

Minimum Charge Temperature: -
Maximum Charge Temperature: -
Minimum Discharge Temperature: -
Maximum Discharge Temperature: -

Mechanical

Mass: 75 g
Volume: 28.29 cm³
Height: 71.15 mm
Diameter: 21.85 mm

Chemistry

Positive Electrode Material: Ni-based
Negative Electrode Material: -

Electrical

Nominal Energy Capacity: 21.6 Wh
Nominal Charge Capacity: 6 Ah
Gravimetric Energy Density: 288 Wh/kg
Volumetric Energy Density: 764 Wh/L
Gravimetric Power Density: 576 W/kg
Volumetric Power Density: 1527 W/L
Max Continuous Charge: 4.2 A

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Overview

Manufacturer: FEB
Model: 21700 6000mAh
Cell Type: Li-ion
Form Factor: Cylindrical 21700
Country of Origin: China
Release Year: 2024

Thermal

Minimum Charge Temperature: -
Maximum Charge Temperature: -
Minimum Discharge Temperature: -
Maximum Discharge Temperature: -

Mechanical

Mass: 75 g
Volume: 28.29 cm³
Height: 71.15 mm
Diameter: 21.85 mm

Chemistry

Positive Electrode Material: Ni-based
Negative Electrode Material: -

Electrical

Nominal Energy Capacity: 21.6 Wh
Nominal Charge Capacity: 6 Ah
Gravimetric Energy Density: 288 Wh/kg
Volumetric Energy Density: 764 Wh/L
Gravimetric Power Density: 576 W/kg
Volumetric Power Density: 1527 W/L
Max Continuous Charge: 4.2 A

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Max Continuous Charge (C-rate)

0.7 C

Max Continuous Discharge

12 A

Max Continuous Discharge (C-rate)

2 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.5 V

Max Continuous Charge (C-rate)

0.7 C

Max Continuous Discharge

12 A

Max Continuous Discharge (C-rate)

2 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.5 V
