50E

EVE Energy

Premium Cell

50E

EVE Energy

Premium Cell

Overview

Manufacturer: EVE Energy

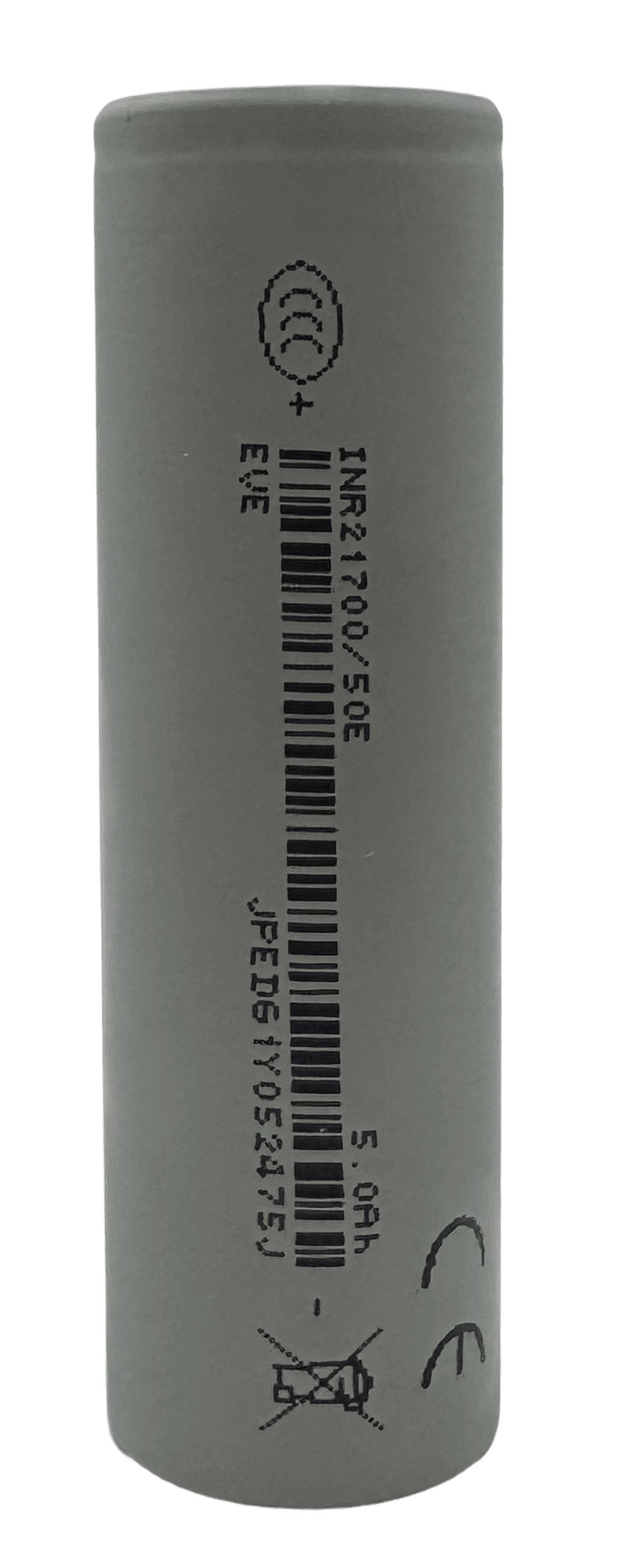

Model: INR21700-50E
Cell Type: Li-ion
Form Factor: Cylindrical 21700
Country of Origin: China
Release Year: 2023

Thermal

Minimum Charge Temperature: -
Maximum Charge Temperature: -
Minimum Discharge Temperature: -
Maximum Discharge Temperature: -

Mechanical

Mass: 71 g
Volume: 24.93 cm³
Height: 70.3 mm
Diameter: 21.25 mm

Chemistry

Positive Electrode Material: Ni-based
Negative Electrode Material: Graphite

Electrical

Nominal Energy Capacity: 18.25 Wh
Nominal Charge Capacity: 5 Ah
Gravimetric Energy Density: 257 Wh/kg
Volumetric Energy Density: 732 Wh/L
Gravimetric Power Density: 771 W/kg
Volumetric Power Density: 2196 W/L
Max Continuous Charge: -

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Subscribe to Voltt Premium to run simulations using this cell

Overview

Manufacturer: EVE Energy
Model: INR21700-50E
Cell Type: Li-ion
Form Factor: Cylindrical 21700
Country of Origin: China
Release Year: 2023

Thermal

Minimum Charge Temperature: -
Maximum Charge Temperature: -
Minimum Discharge Temperature: -
Maximum Discharge Temperature: -

Mechanical

Mass: 71 g
Volume: 24.93 cm³
Height: 70.3 mm
Diameter: 21.25 mm

Chemistry

Positive Electrode Material: Ni-based
Negative Electrode Material: Graphite

Electrical

Nominal Energy Capacity: 18.25 Wh
Nominal Charge Capacity: 5 Ah
Gravimetric Energy Density: 257 Wh/kg
Volumetric Energy Density: 732 Wh/L
Gravimetric Power Density: 771 W/kg
Volumetric Power Density: 2196 W/L
Max Continuous Charge: -

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Subscribe to Voltt Premium to run simulations using this cell

Max Continuous Charge (C-rate)

-

Max Continuous Discharge

15 A

Max Continuous Discharge (C-rate)

3 C

Voltage

Nominal Voltage

3.65 V

Max Voltage

4.2 V

Min Voltage

2.5 V

Max Continuous Charge (C-rate)

-

Max Continuous Discharge

15 A

Max Continuous Discharge (C-rate)

3 C

Voltage

Nominal Voltage

3.65 V

Max Voltage

4.2 V

Min Voltage

2.5 V
