Overview

Manufacturer: EVE Energy

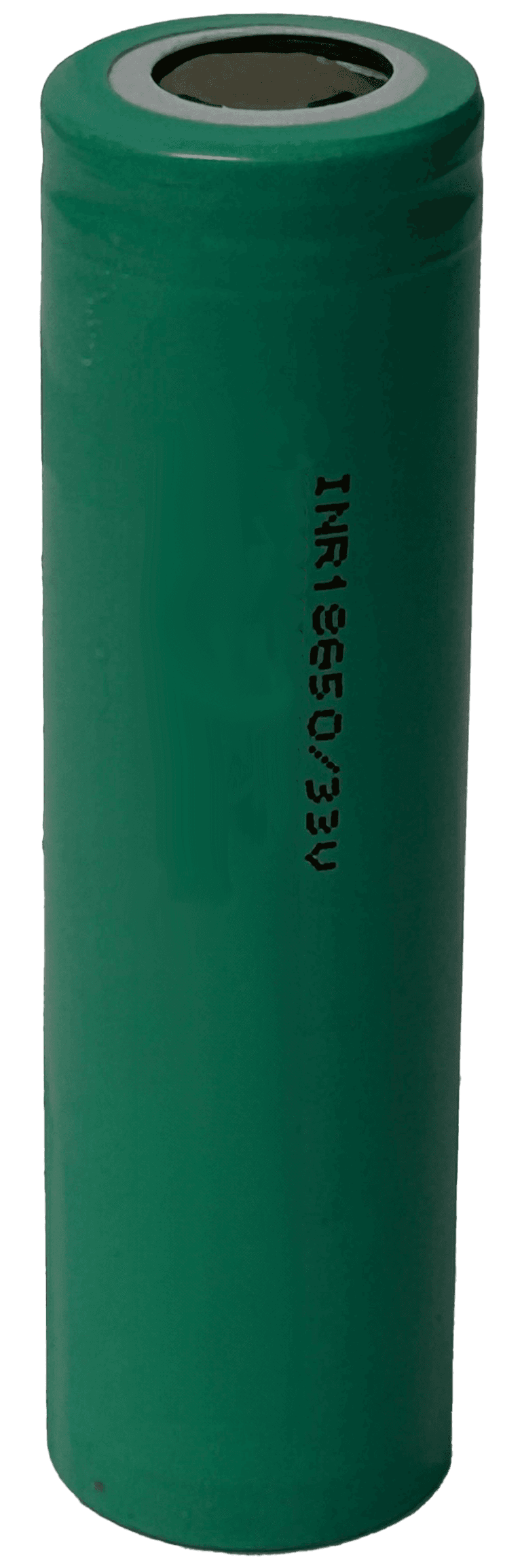

Model: INR18650-33V
Cell Type: Li-ion
Form Factor: Cylindrical 18650
Country of Origin: China
Release Year: 2021

Thermal

Minimum Charge Temperature: -
Maximum Charge Temperature: -
Minimum Discharge Temperature: -
Maximum Discharge Temperature: -

Mechanical

Mass: 48 g
Volume: 17.42 cm³
Height: 65.15 mm
Diameter: 18.45 mm

Chemistry

Positive Electrode Material: Ni-based
Negative Electrode Material: Graphite

Electrical

Nominal Energy Capacity: 11.16 Wh
Nominal Charge Capacity: 3.1 Ah
Gravimetric Energy Density: 232 Wh/kg
Volumetric Energy Density: 641 Wh/L
Gravimetric Power Density: 750 W/kg
Volumetric Power Density: 2067 W/L
Max Continuous Charge: -

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Coming soon to Simulate. Details available upon request.

Overview

Manufacturer: EVE Energy
Model: INR18650-33V
Cell Type: Li-ion
Form Factor: Cylindrical 18650
Country of Origin: China
Release Year: 2021

Thermal

Minimum Charge Temperature: -
Maximum Charge Temperature: -
Minimum Discharge Temperature: -
Maximum Discharge Temperature: -

Mechanical

Mass: 48 g
Volume: 17.42 cm³
Height: 65.15 mm
Diameter: 18.45 mm

Chemistry

Positive Electrode Material: Ni-based
Negative Electrode Material: Graphite

Electrical

Nominal Energy Capacity: 11.16 Wh
Nominal Charge Capacity: 3.1 Ah
Gravimetric Energy Density: 232 Wh/kg
Volumetric Energy Density: 641 Wh/L
Gravimetric Power Density: 750 W/kg
Volumetric Power Density: 2067 W/L
Max Continuous Charge: -

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Coming soon to Simulate. Details available upon request.

Max Continuous Charge (C-rate)

-

Max Continuous Discharge

10 A

Max Continuous Discharge (C-rate)

3.2 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.5 V

Max Continuous Charge (C-rate)

-

Max Continuous Discharge

10 A

Max Continuous Discharge (C-rate)

3.2 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.5 V
