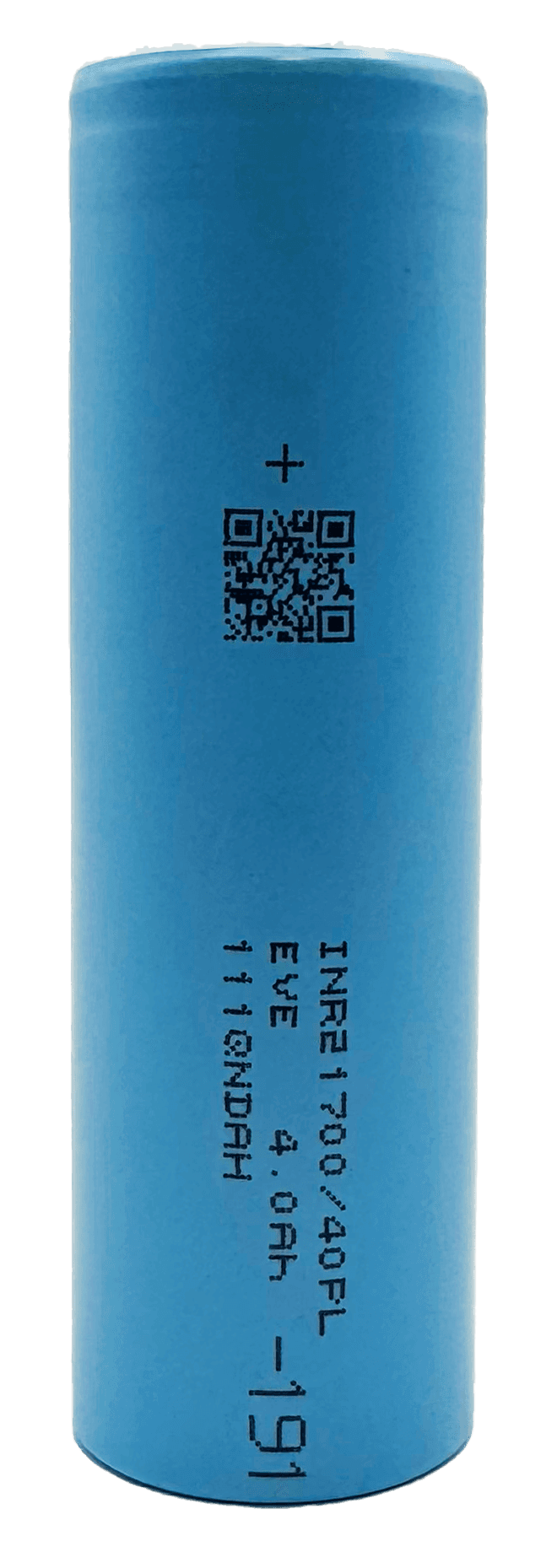

40PL

EVE Energy

Premium Cell

We tear down cells and accurately measure every physical parameter

Book a Call

Overview

Manufacturer

EVE Energy

Cell Model

40PL

Cell Type

Li-ion

Form Factor

Cylindrical 21700

Country of Origin

China

Release Year

2023

Thermal

Minimum Charge Temperature

-

Maximum Charge Temperature

-

Maximum Discharge Temperature

-

Minimum Discharge Temperature

-

Mechanical

Mass

67 g

Volume

24.93 cm³

Height

70.3 mm

Diameter

21.25 mm

Chemistry

Positive Electrode Material

Ni-based

Negative Electrode Material

Graphite/Si additive

Electrical

Energy

Volumetric Energy Density

578 Wh/L

Gravimetric Energy Density

215 Wh/kg

Nominal Energy Capacity

14.4 Wh

Nominal Charge Capacity

4 Ah

Power

Volumetric Power Density

10108 W/L

Gravimetric Power Density

3761 W/kg

Current

Max Continuous Charge

8 A

Max Continuous Charge (C-rate)

2 C

Max Continuous Discharge

70 A

Max Continuous Discharge (C-rate)

17.5 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.5 V

Fixed Rate

0.5 C1 C3 C

Load Type

Operation

Initial SOC [%]

Initial Cell Temperature [°C]

Heat Transfer Coefficient [W/m²K]

Want to edit the inputs and run your own Drive Cycles?
