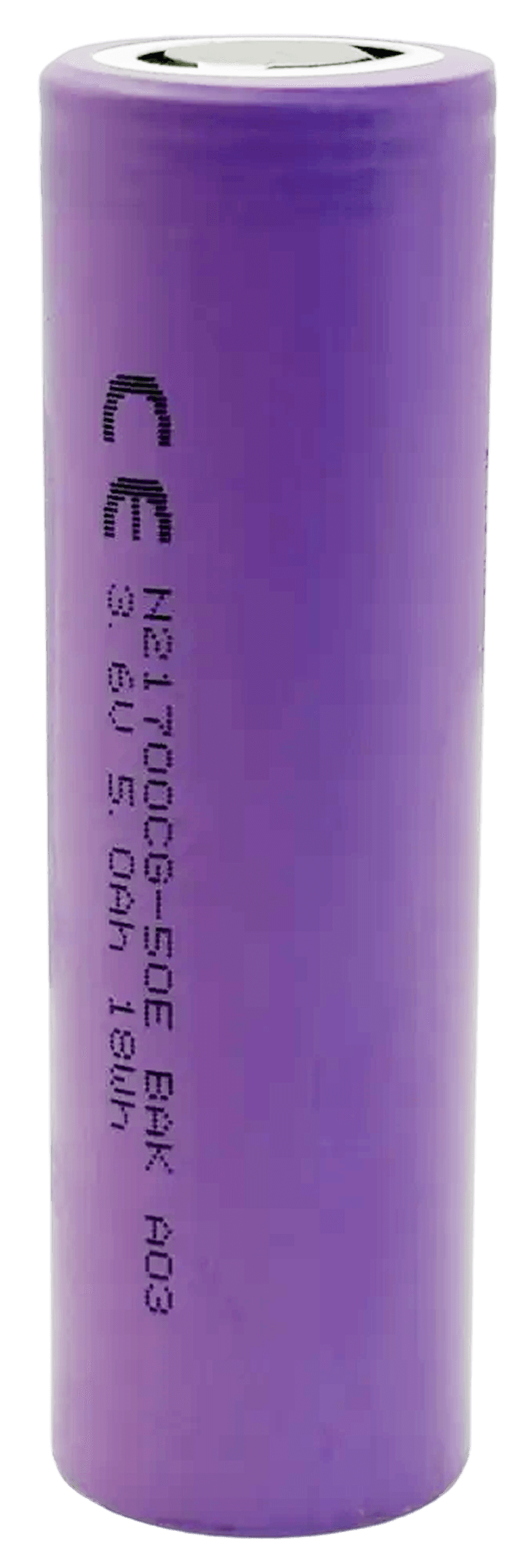

CG-50E

BAK

Premium Cell

Subscribe to Voltt Premium to run simulations using this cell

Overview

Manufacturer: BAK
Model: N21700CG-50E
Cell Type: Li-ion
Form Factor: Cylindrical 21700
Country of Origin: China
Release Year: 2023

Thermal

Minimum Charge Temperature: 0 °C
Maximum Charge Temperature: 55 °C

CG-50E

BAK

Premium Cell

Subscribe to Voltt Premium to run simulations using this cell

Overview

Manufacturer: BAK
Model: N21700CG-50E
Cell Type: Li-ion
Form Factor: Cylindrical 21700
Country of Origin: China
Release Year: 2023

Thermal

Minimum Charge Temperature: 0 °C
Maximum Charge Temperature: 55 °C

Minimum Discharge Temperature

-20 °C

Maximum Discharge Temperature

70 °C

Mechanical

Mass: 67 g
Volume: 25.45 cm³
Height: 70.75 mm
Diameter: 21.4 mm

Chemistry

Positive Electrode Material: Ni-based
Negative Electrode Material: -

Electrical

Nominal Energy Capacity: 18 Wh
Nominal Charge Capacity: 5 Ah
Gravimetric Energy Density: 269 Wh/kg
Volumetric Energy Density: 707 Wh/L
Gravimetric Power Density: 806 W/kg
Volumetric Power Density: 2122 W/L
Max Continuous Charge: 5 A
Max Continuous Charge (C-rate): 1 C
Max Continuous Discharge: 15 A
Max Continuous Discharge (C-rate): 3 C
Nominal Voltage: 3.6 V
Max Voltage: 4.2 V
Min Voltage: 2.5 V

Simulate This Cell

Run simulations with custom duty cycles and pack configurations

Minimum Discharge Temperature

-20 °C

Maximum Discharge Temperature

70 °C

Mechanical

Mass: 67 g
Volume: 25.45 cm³
Height: 70.75 mm
Diameter: 21.4 mm

Chemistry

Positive Electrode Material: Ni-based
Negative Electrode Material: -

Electrical

Nominal Energy Capacity: 18 Wh
Nominal Charge Capacity: 5 Ah
Gravimetric Energy Density: 269 Wh/kg
Volumetric Energy Density: 707 Wh/L
Gravimetric Power Density: 806 W/kg
Volumetric Power Density: 2122 W/L
Max Continuous Charge: 5 A
Max Continuous Charge (C-rate): 1 C
Max Continuous Discharge: 15 A
Max Continuous Discharge (C-rate): 3 C
Nominal Voltage: 3.6 V
Max Voltage: 4.2 V
Min Voltage: 2.5 V

Simulate This Cell

Run simulations with custom duty cycles and pack configurations
