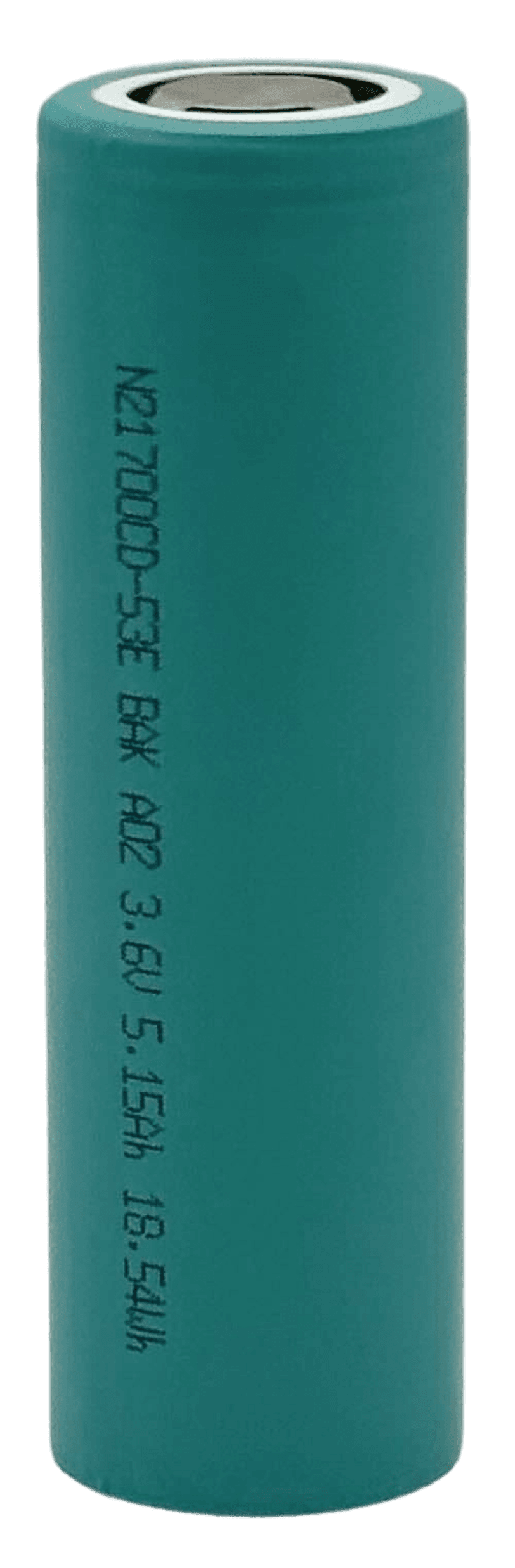

53E

BAK

Premium Cell

We tear down cells and accurately measure every physical parameter

Book a Call

Overview

Manufacturer

BAK

Cell Model

N21700CD-53E

Cell Type

Li-ion

Form Factor

Cylindrical 21700

Country of Origin

China

Release Year

-

Thermal

Minimum Charge Temperature

-

Maximum Charge Temperature

-

Maximum Discharge Temperature

-

Minimum Discharge Temperature

-

Mechanical

Mass

69 g

Volume

25.5 cm³

Height

70.25 mm

Diameter

21.15 mm

Chemistry

Positive Electrode Material

Ni-based

Negative Electrode Material

Graphite

Electrical

Energy

Volumetric Energy Density

748 Wh/L

Gravimetric Energy Density

277 Wh/kg

Nominal Energy Capacity

19.08 Wh

Nominal Charge Capacity

5.3 Ah

Power

Volumetric Power Density

748 W/L

Gravimetric Power Density

277 W/kg

Current

Max Continuous Charge

5.3 A

Max Continuous Charge (C-rate)

1 C

Max Continuous Discharge

5.3 A

Max Continuous Discharge (C-rate)

1 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.5 V

Fixed Rate

0.5 C1 C3 C

Load Type

Operation

Initial SOC [%]

Initial Cell Temperature [°C]

Heat Transfer Coefficient [W/m²K]
