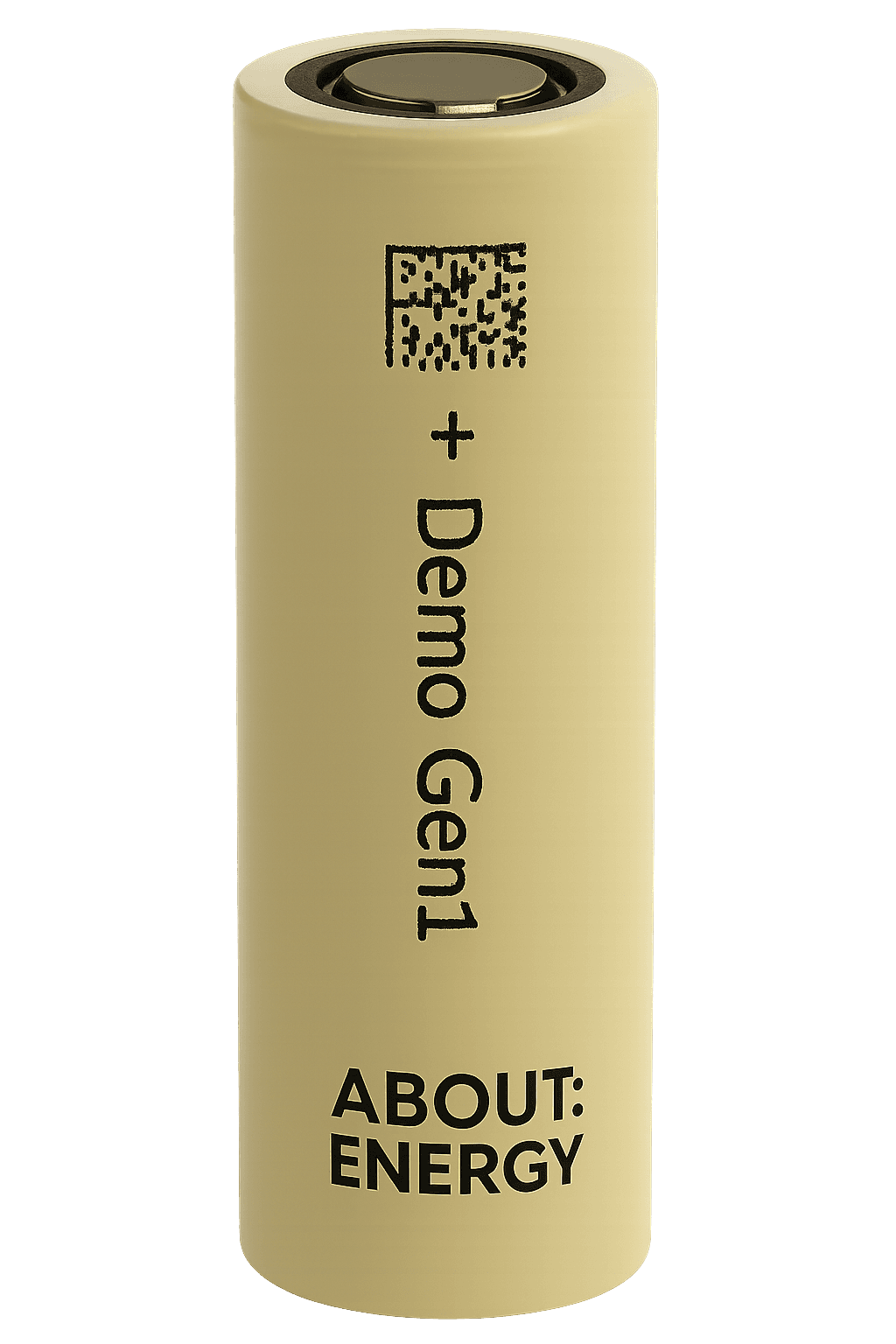

Gen1-Demo

About:Energy

Coming Soon

We tear down cells and accurately measure every physical parameter

Book a Call

Overview

Manufacturer

About:Energy

Cell Model

Gen1-Demo

Cell Type

Li-ion

Form Factor

Cylindrical 21700

Country of Origin

United Kingdom

Release Year

2023

Thermal

Minimum Charge Temperature

-

Maximum Charge Temperature

-

Maximum Discharge Temperature

-

Minimum Discharge Temperature

-

Mechanical

Mass

77 g

Volume

24.25 cm³

Height

70 mm

Diameter

21 mm

Chemistry

Positive Electrode Material

Ni-based (high Ni)

Negative Electrode Material

Graphite

Electrical

Energy

Volumetric Energy Density

742 Wh/L

Gravimetric Energy Density

234 Wh/kg

Nominal Energy Capacity

18 Wh

Nominal Charge Capacity

5 Ah

Power

Volumetric Power Density

1113 W/L

Gravimetric Power Density

351 W/kg

Current

Max Continuous Charge

3.5 A

Max Continuous Charge (C-rate)

0.7 C

Max Continuous Discharge

7.5 A

Max Continuous Discharge (C-rate)

1.5 C

Voltage

Nominal Voltage

3.6 V

Max Voltage

4.2 V

Min Voltage

2.5 V

Fixed Rate

0.5 C1 C3 C

Load Type

Operation

Initial SOC [%]

Initial Cell Temperature [°C]

Heat Transfer Coefficient [W/m²K]

Want to edit the inputs and run your own Drive Cycles?
